SOLUTION

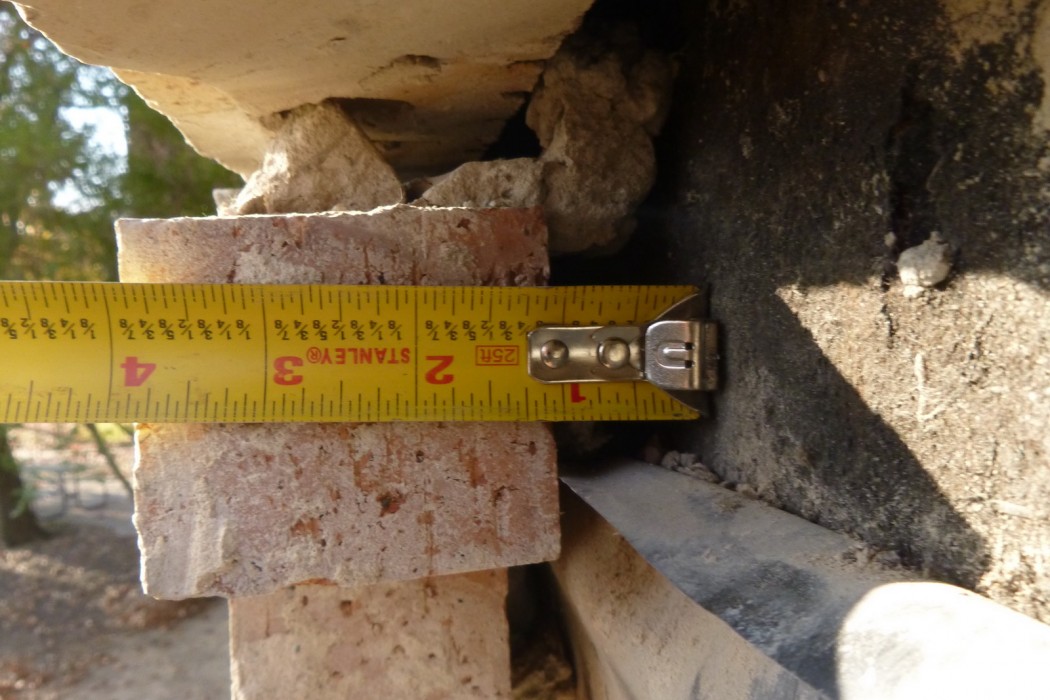

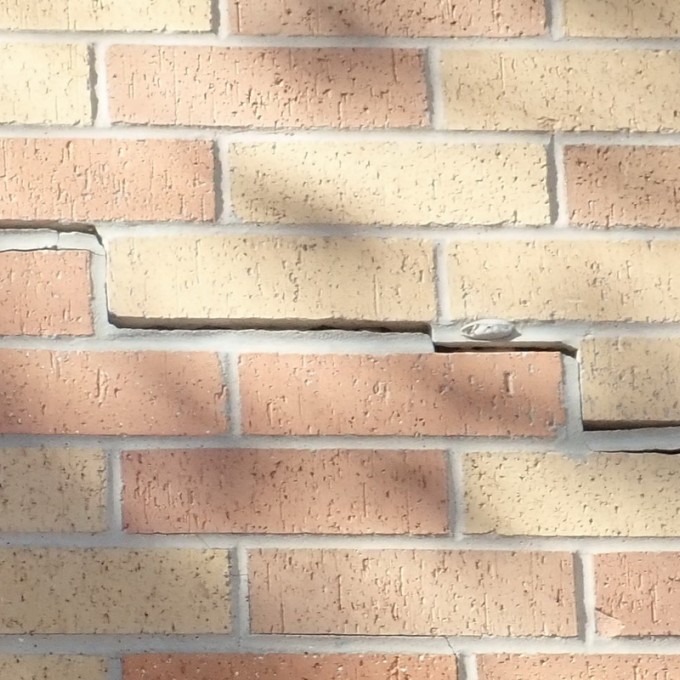

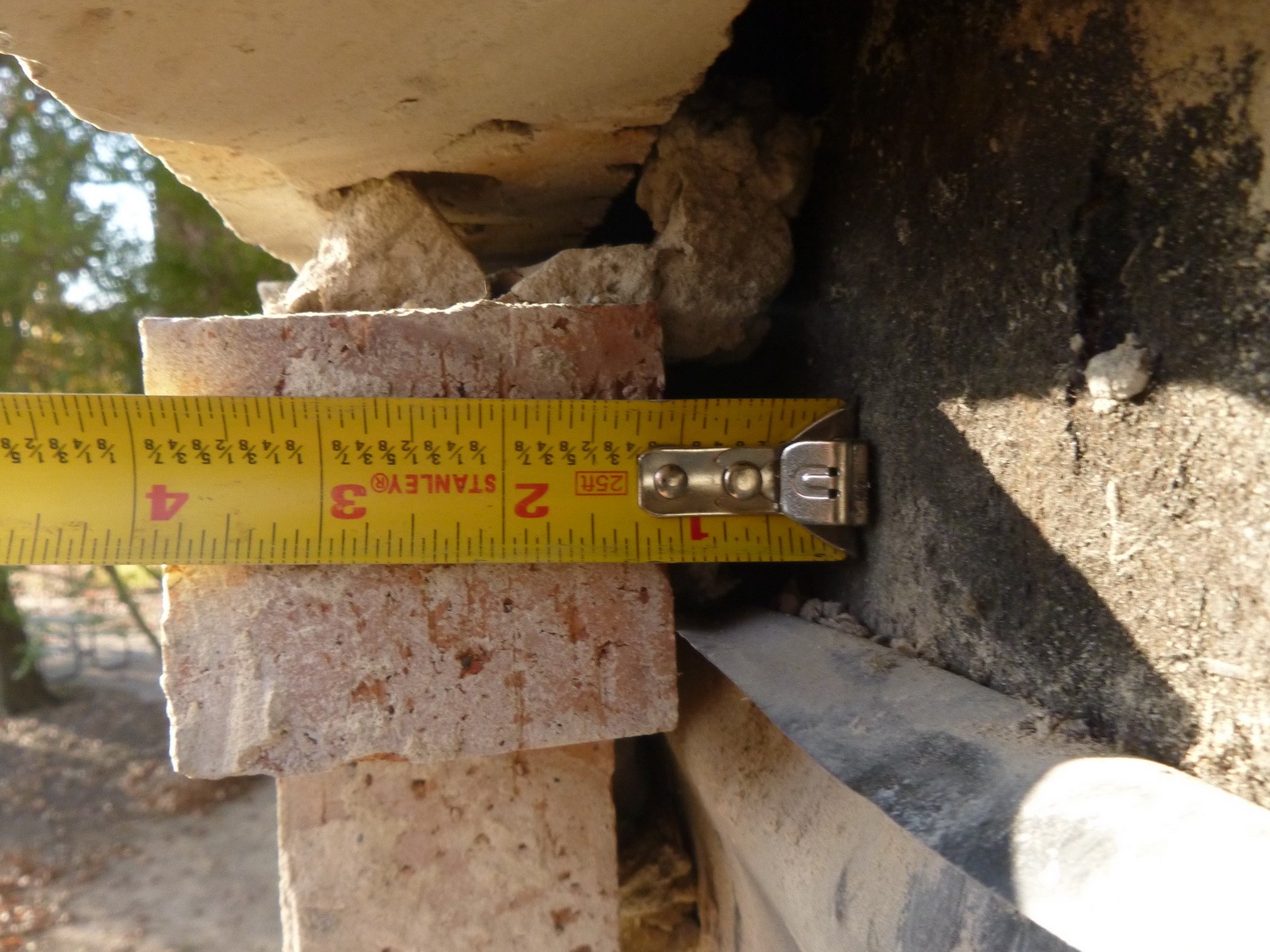

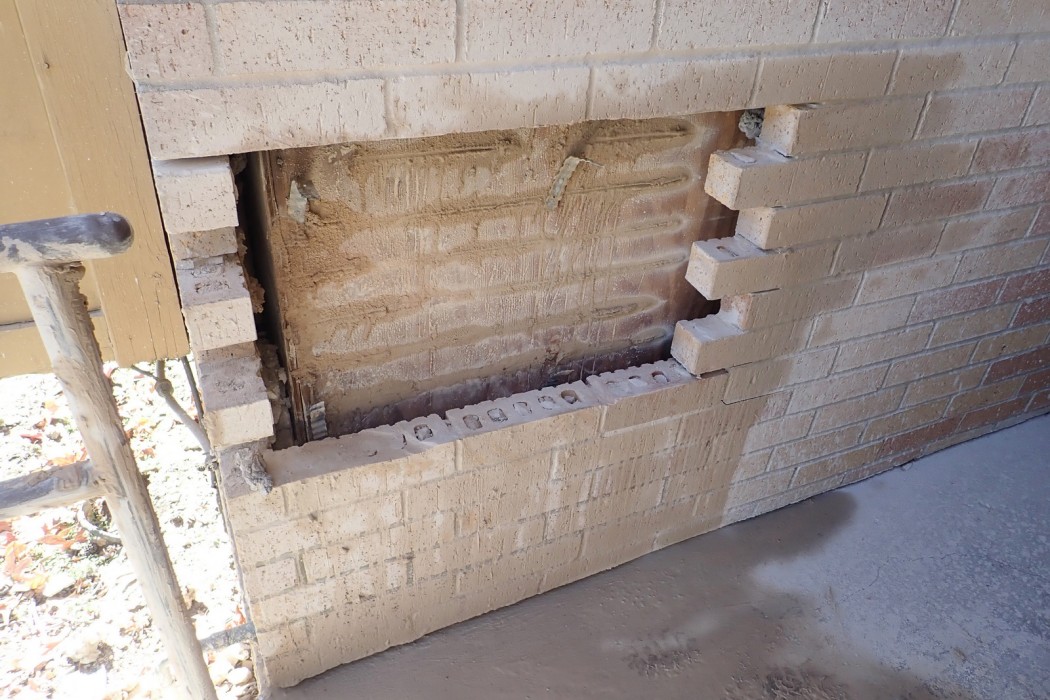

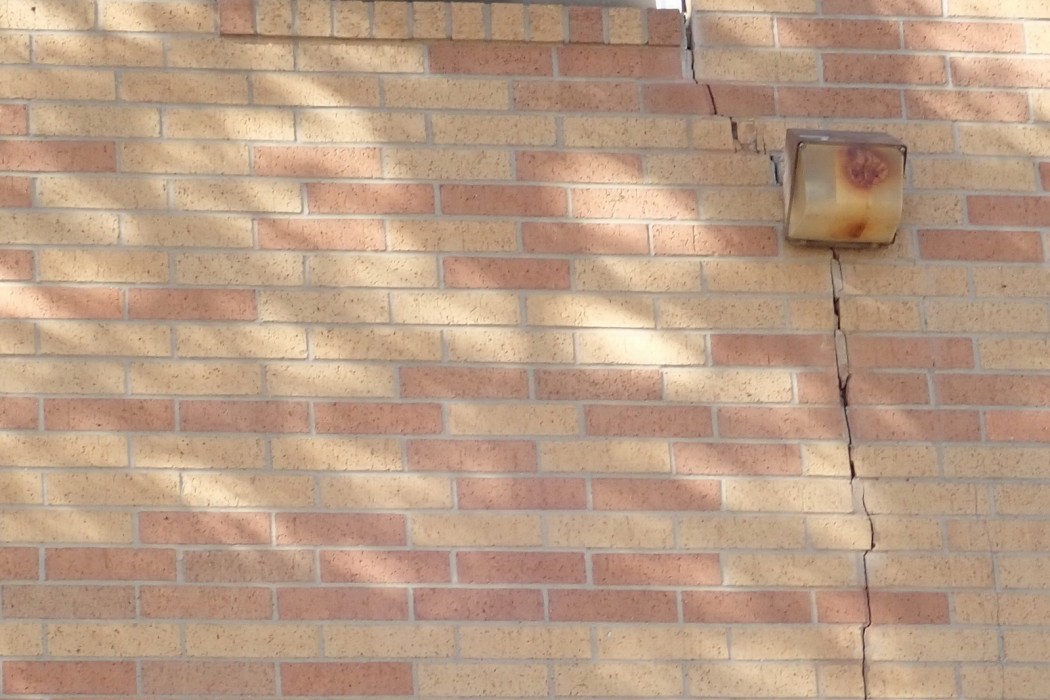

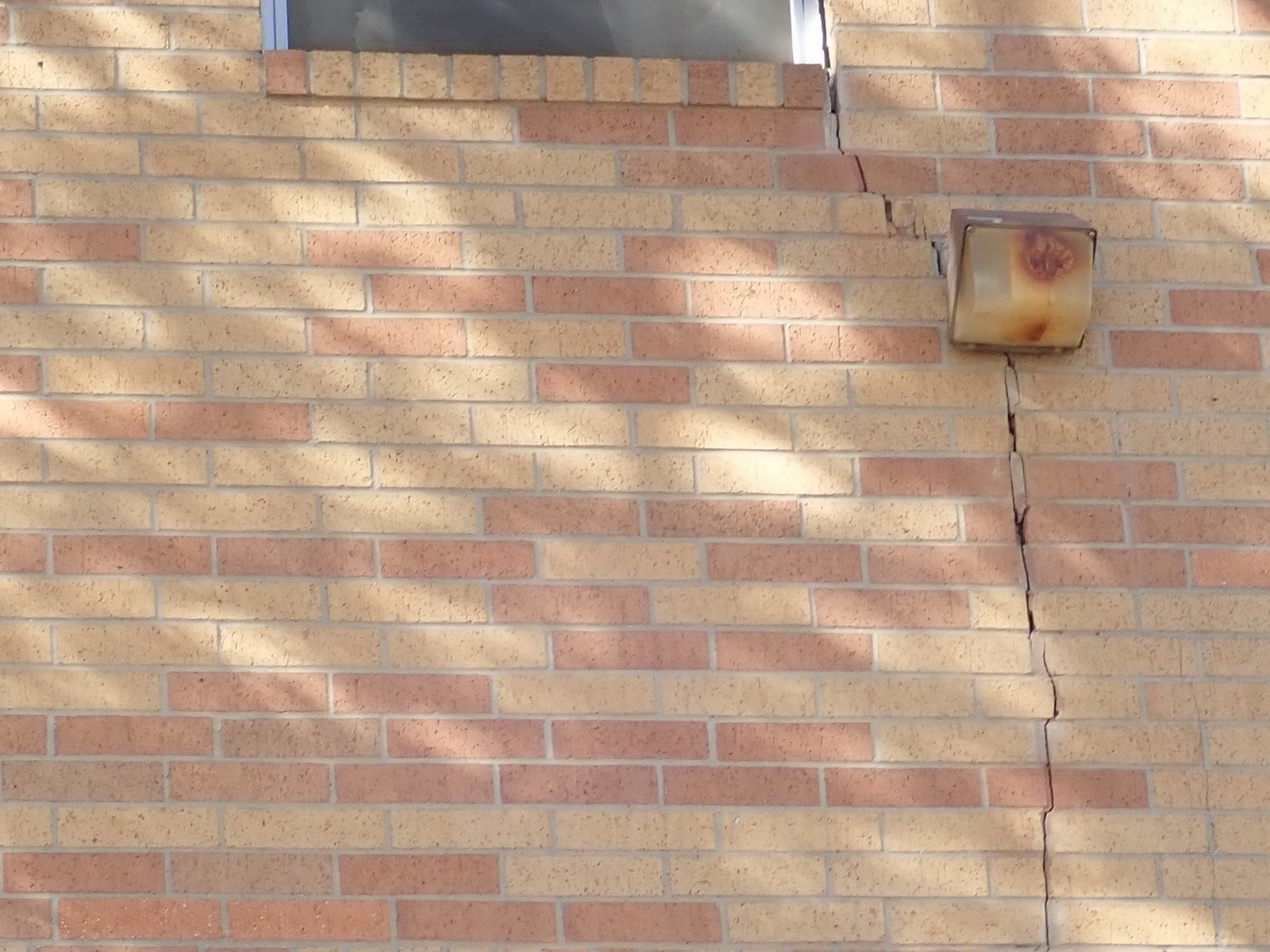

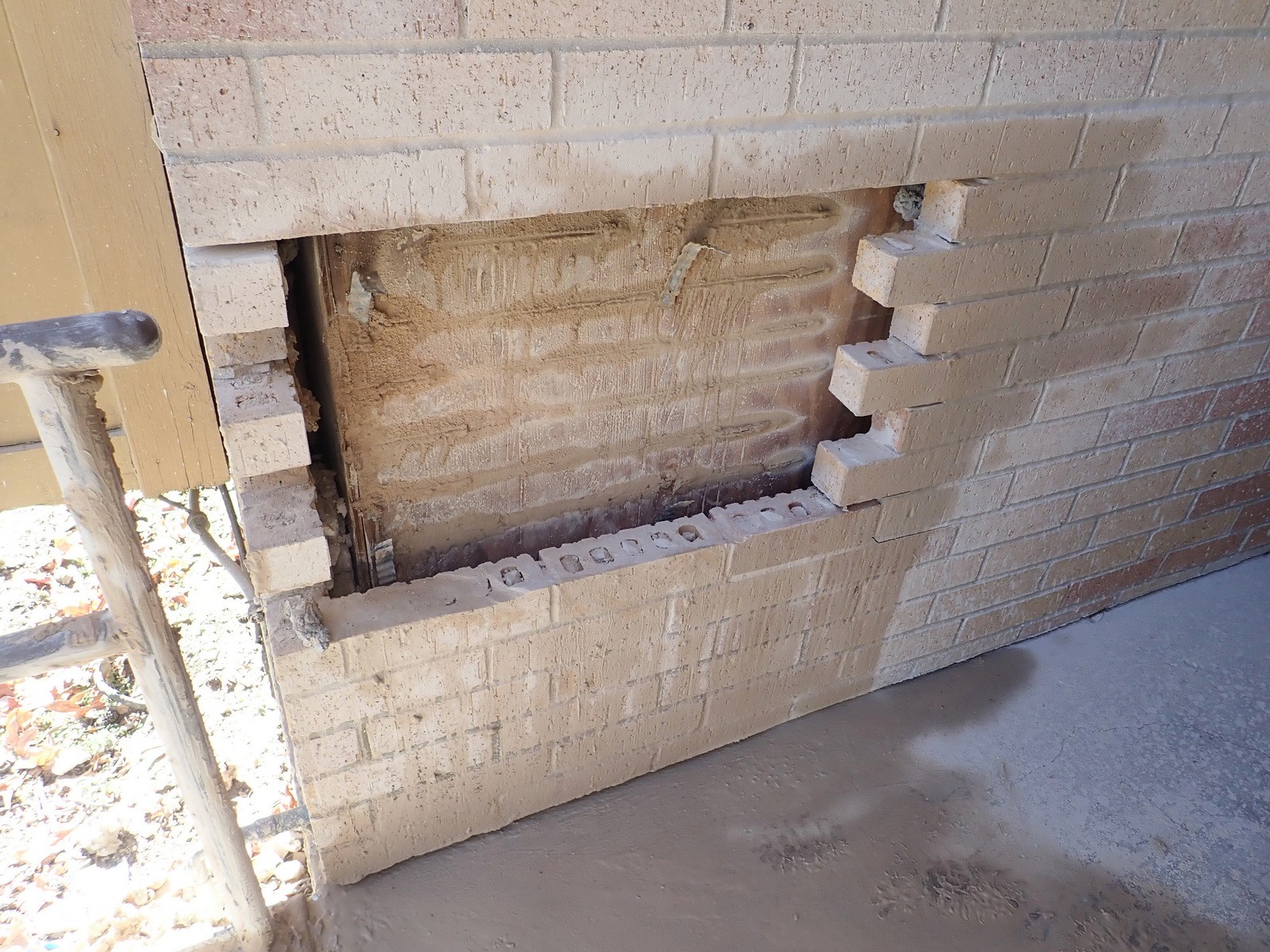

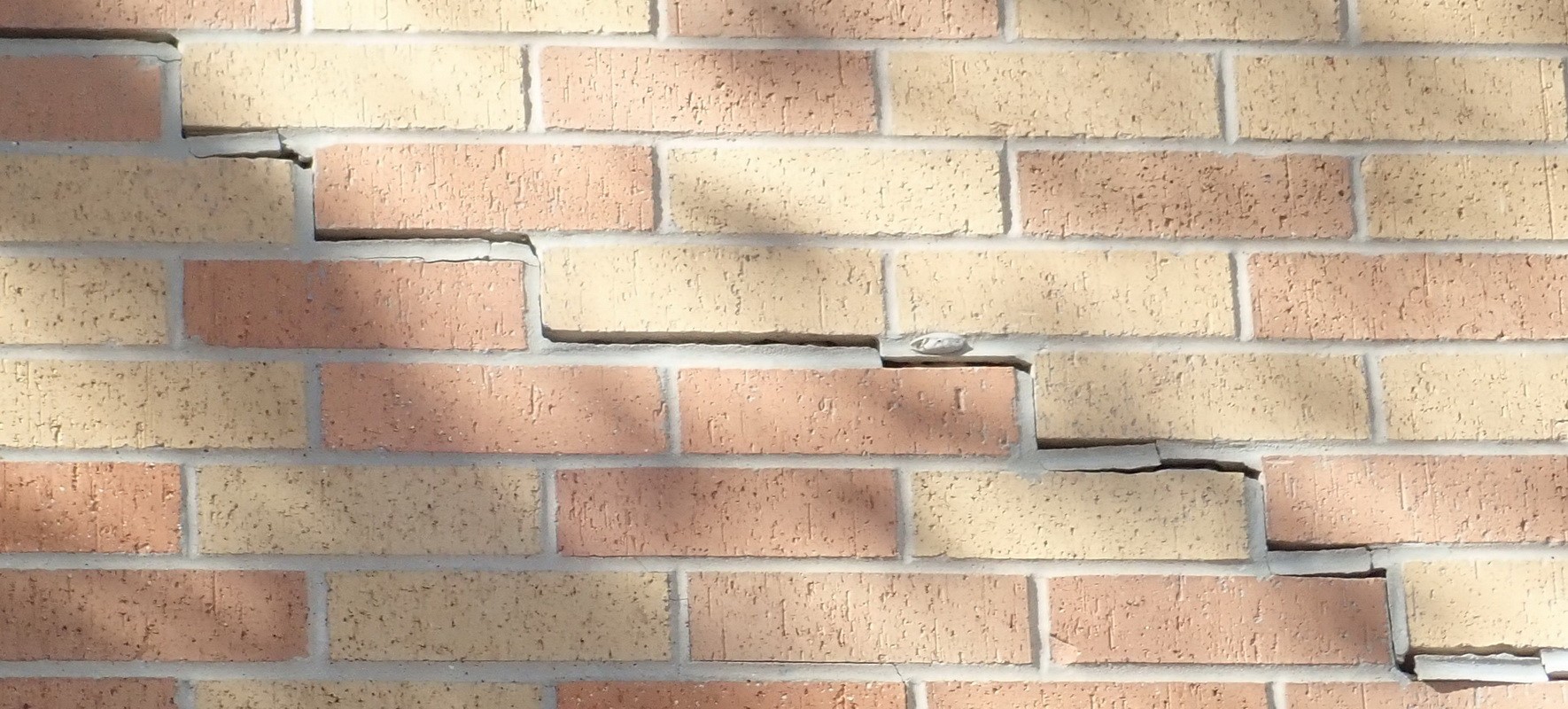

WJE performed a visual condition assessment of the facade and supplemented that work with exploratory wall openings, scanning with a Fisher M Scope, and exploration of concealed conditions with a borescope. WJE determined that facade distress was a result of inadequate provisions for brick volume change and support from an overly flexible foundation system. Damage caused by these stressors included vertical cracking emanating out of corners of wall openings, diagonal cracking resulting from foundation movement, over sailing of the foundation at building corners, bowing of masonry walls at constrained conditions, and disengagement of brick ties from the wood framing. WJE prepared corrective details and specifications to mitigate the distress. New vertical expansion joints were cut into the brick facade at the corners of windows and at building corners. Bowing facades were supplemented with additional brick ties or were partially removed and rebuilt with newly installed brick ties.

WJE observed construction of the repairs and provided additional consulting when unforeseen conditions were discovered. The repairs greatly increased the number of brick expansion joints, producing a facade that is more accommodating of volume change and can flex with foundation movement.
