SOLUTION

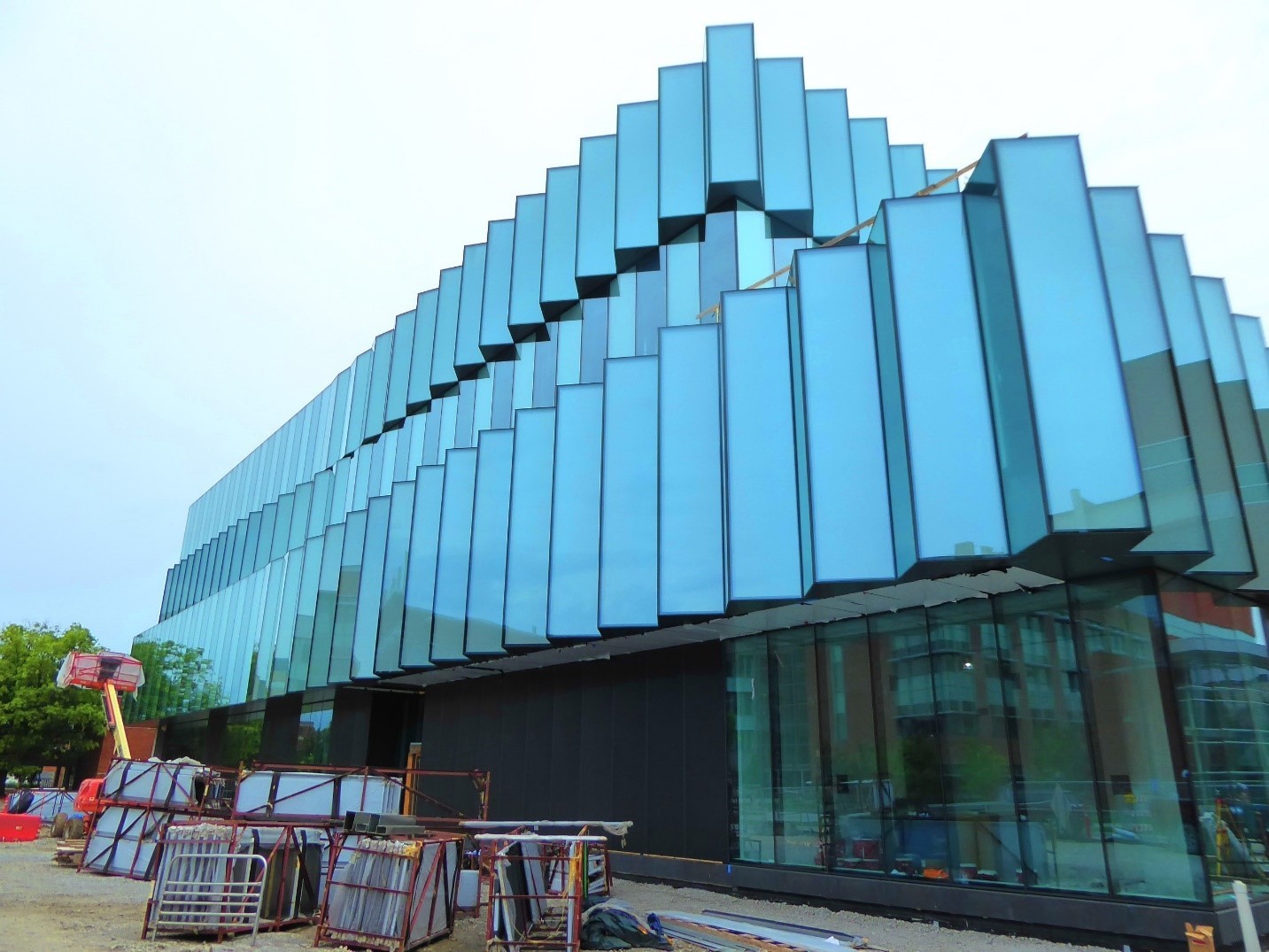

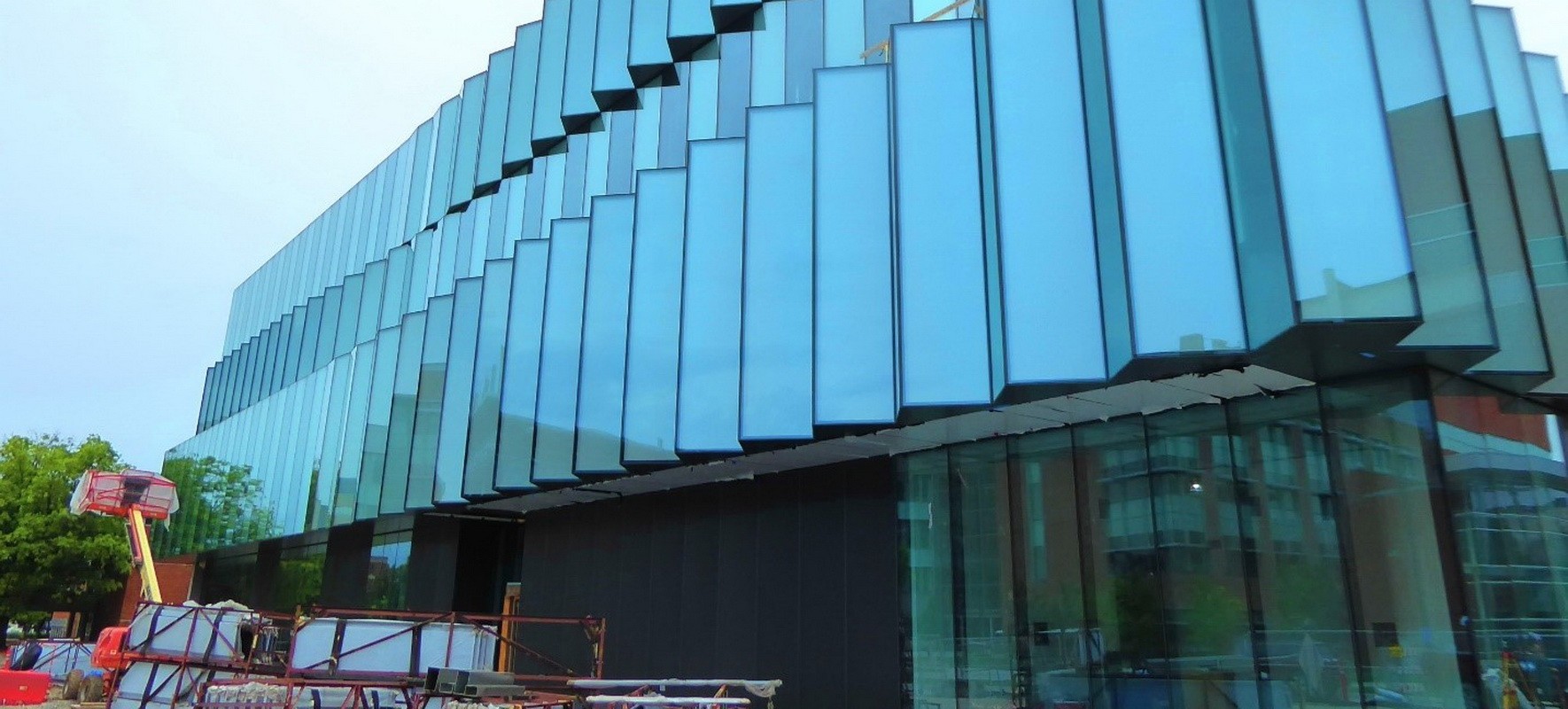

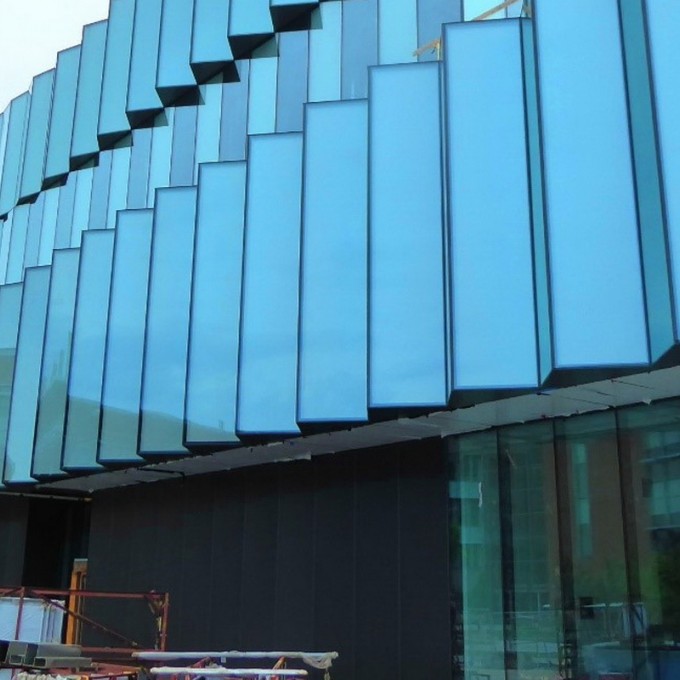

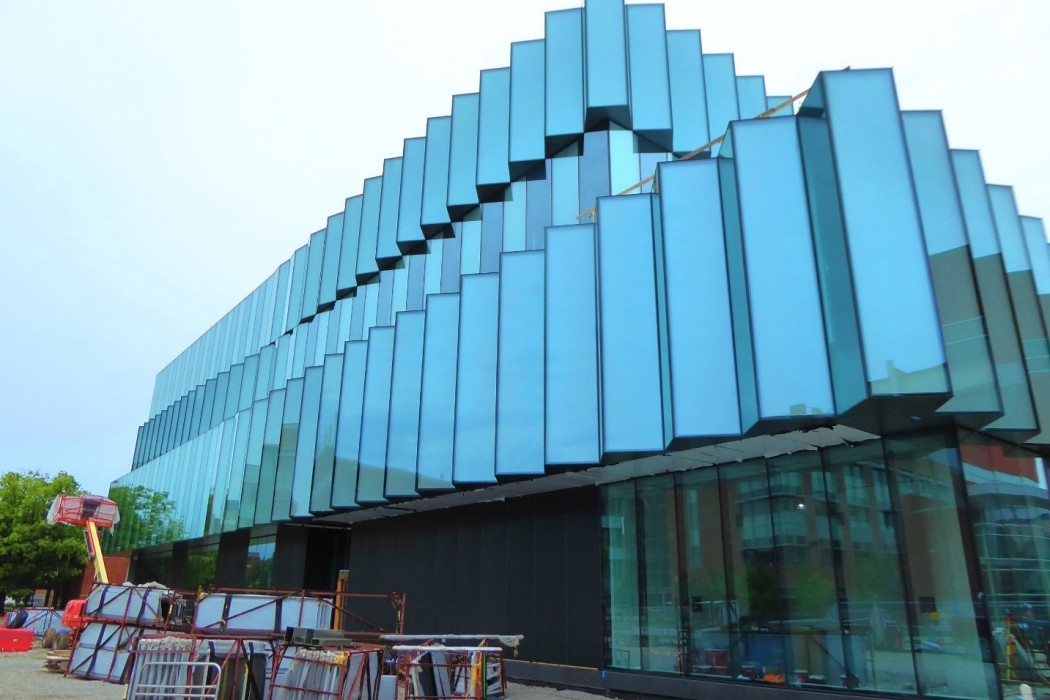

The BECx process focused on the custom unitized curtain wall, roofing, waterproofing, insulation, air barrier, cladding, and louver systems, as well as the complex interfaces between these different systems. WJE’s design phase services included reviewing the Facilities Design Manual (OPR) and Schematic Design Report (BOD) to understand the performance goals for the project; providing a BECx plan and specification section to identify the BECx purpose, process, and expectations for the project; and performing detailed independent design reviews of the design development documents and construction documents (CDs) to verify conformance with the OPR and BOD.

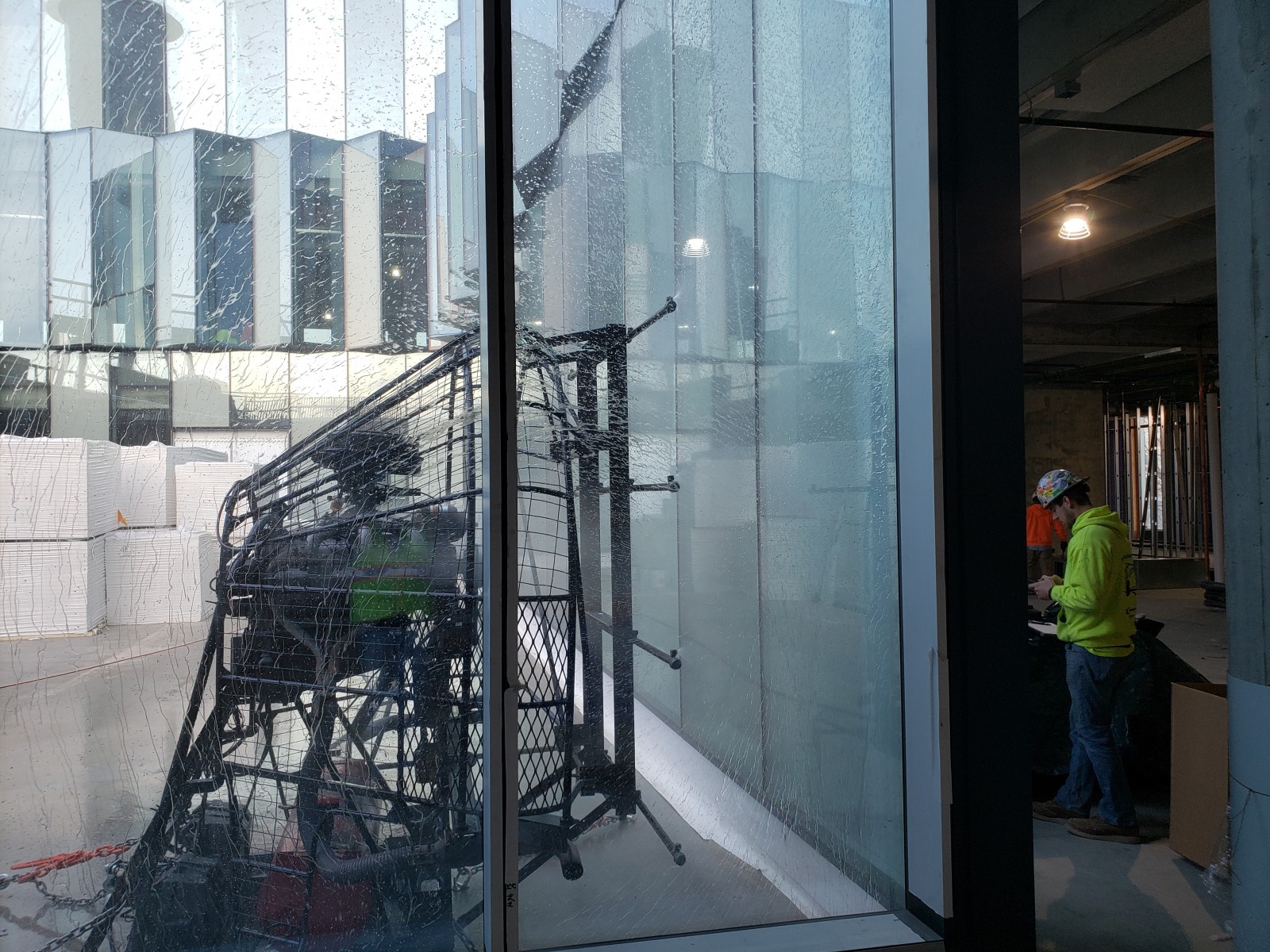

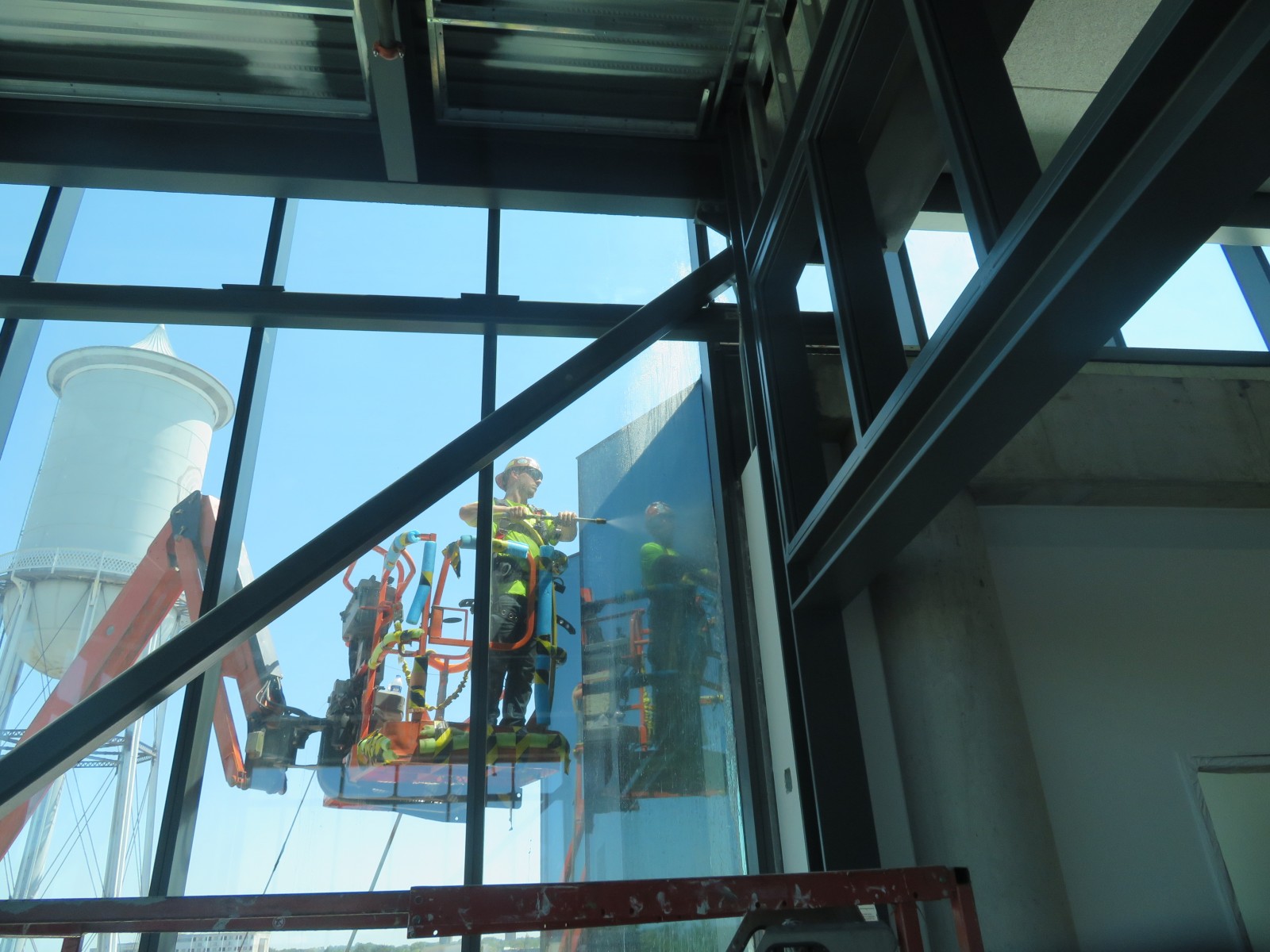

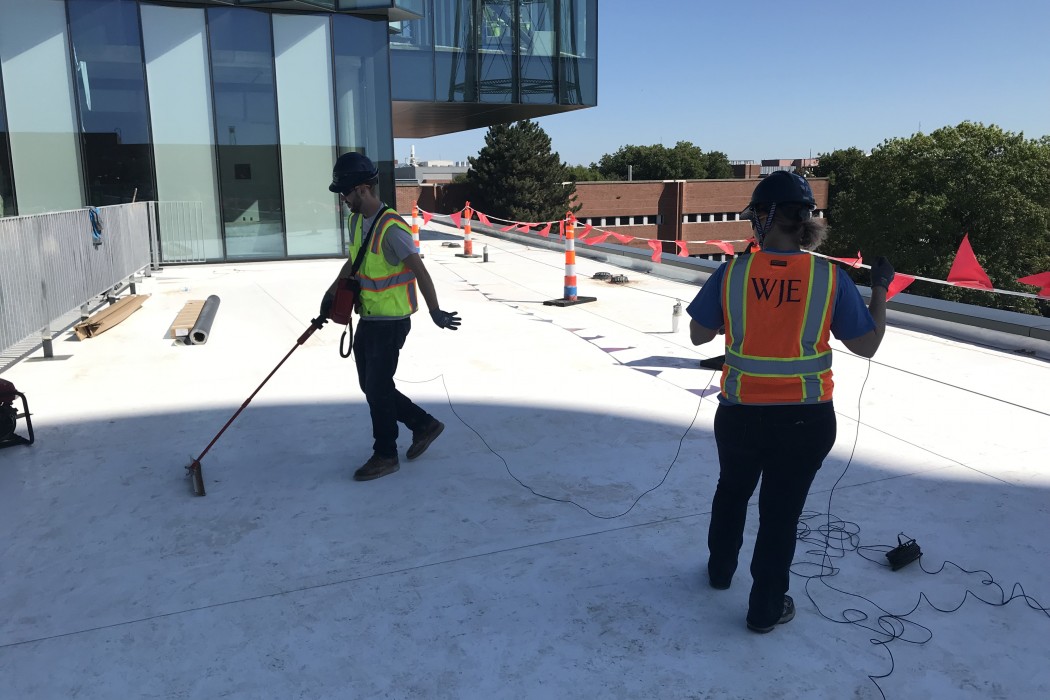

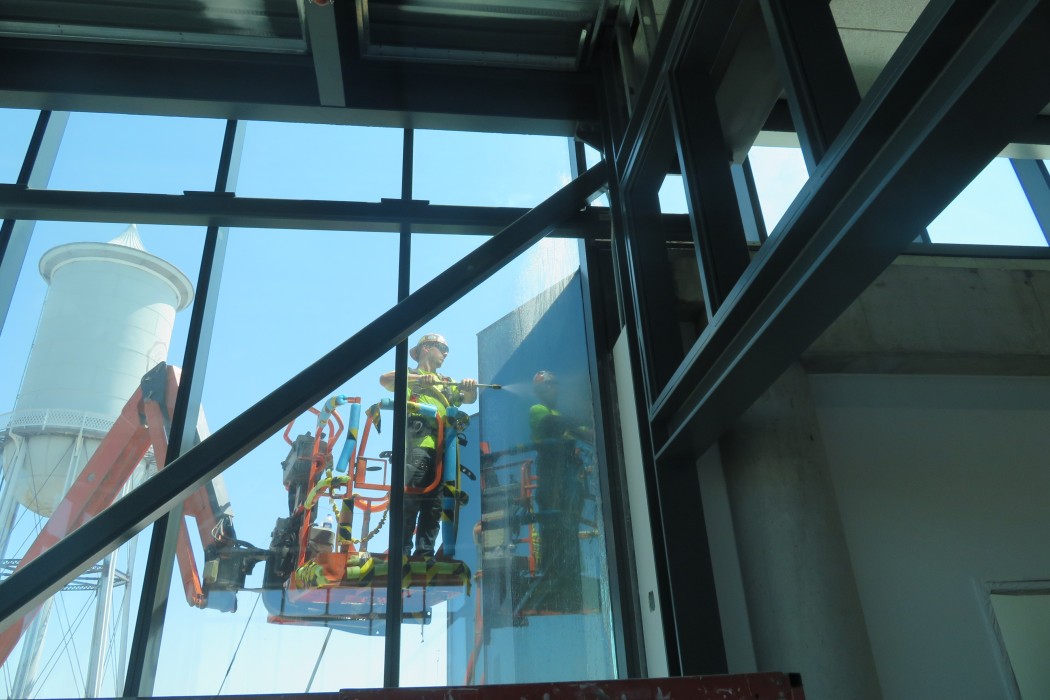

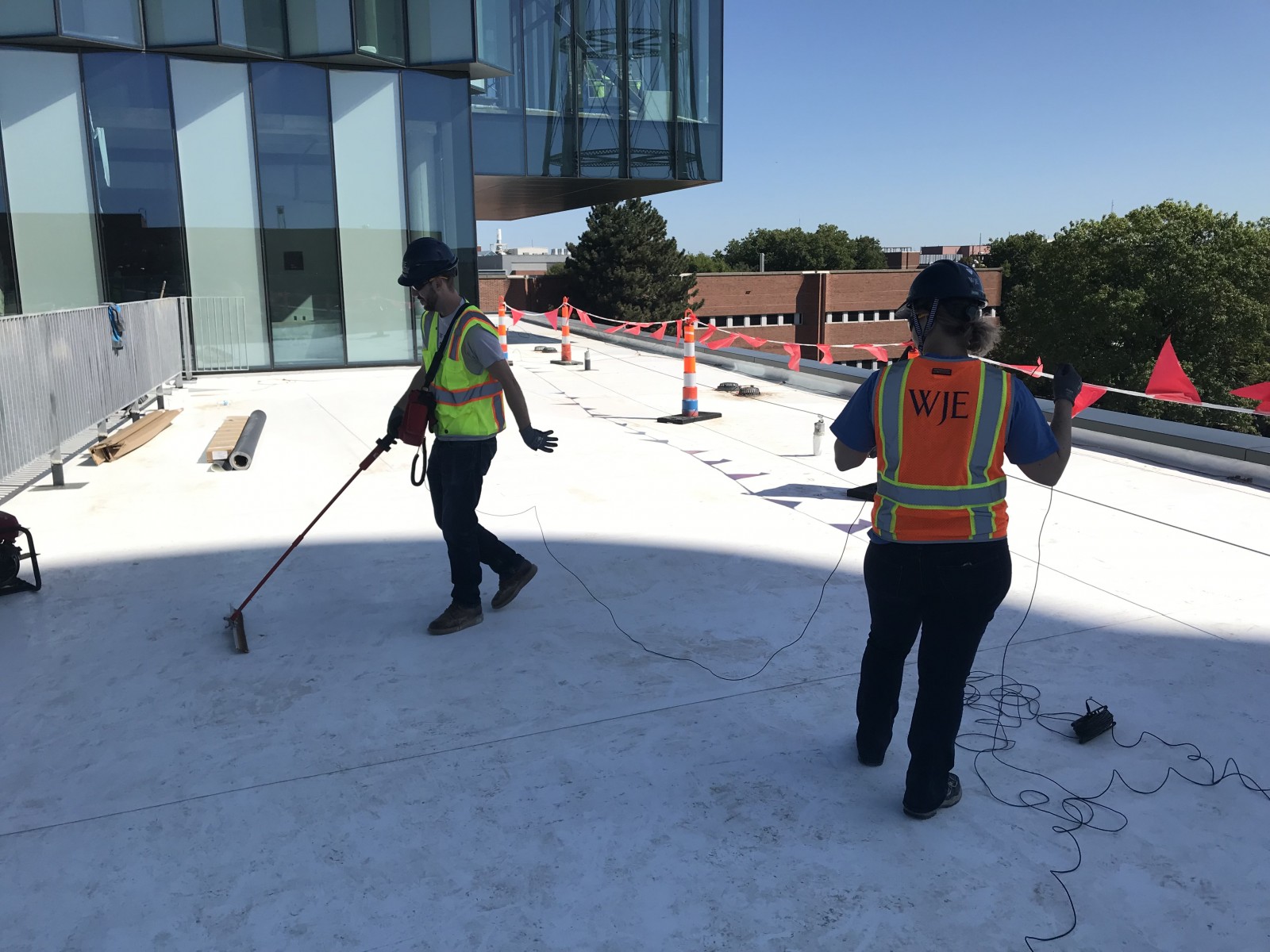

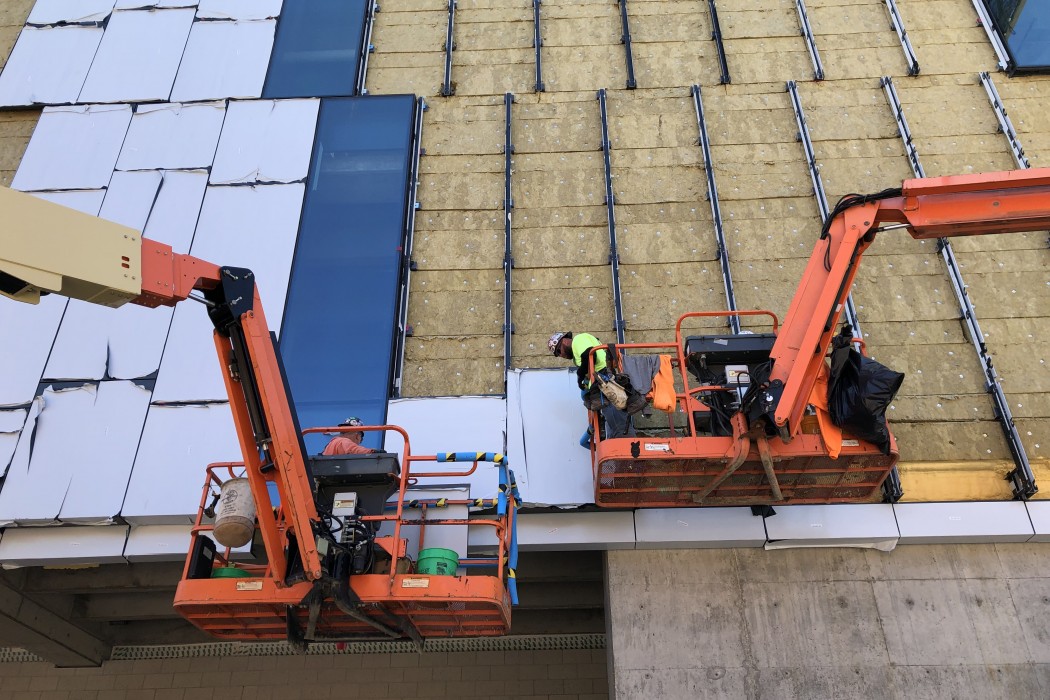

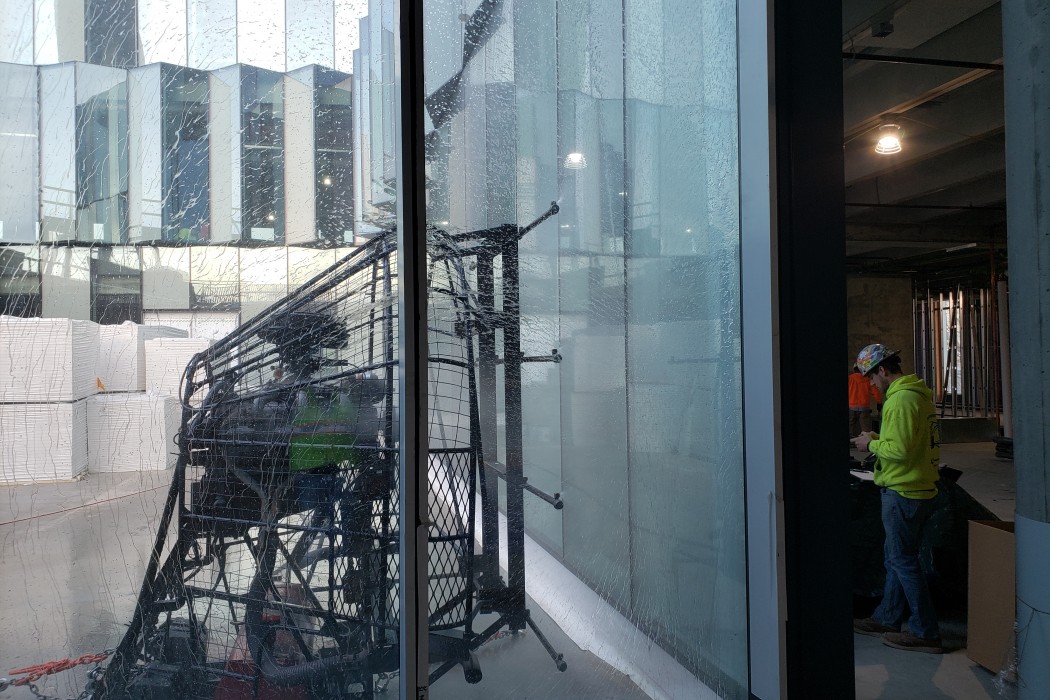

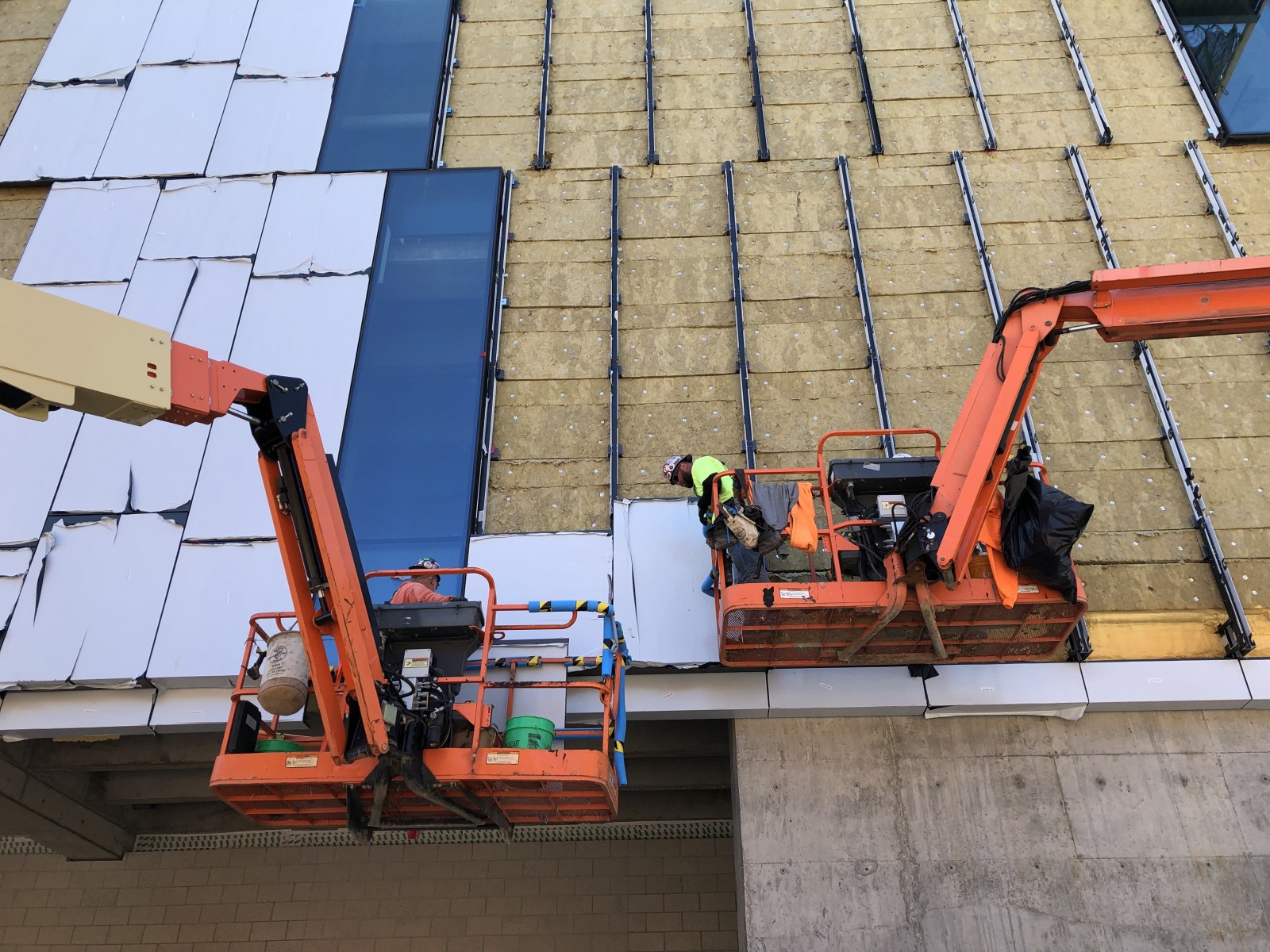

Prior to construction, WJE reviewed building enclosure submittals for general conformance with industry standards and the CDs, and to verify constructability and performance, reviewed construction and testing of an off-site laboratory performance mockup, which was subjected to the full range of ASTM E2099 testing. During construction, WJE performed periodic site visits to observe and document the installations in progress and to help resolve unanticipated field issues. WJE also coordinated and witnessed or performed field functional performance testing of the curtain wall, air barrier, roofing, and waterproofing systems and interfaces.
