Field Testing of Tension Cable Anchorage Plates

Steel plates embedded in concrete beams served as the anchor points for high tension cables supporting a unique full-story glass wall system. Given their critical function, the WJE project team tested the embedded plates in a manner that would provide confidence in their ability to perform as intended.

BACKGROUND

The Institute of Molecular Medicine (IMM) is a state-of-the-art laboratory and lecture facility at the University of Texas Health Science Center. The six-story structure includes a full-height glass wall that is supported by tensioned cables.

SOLUTION

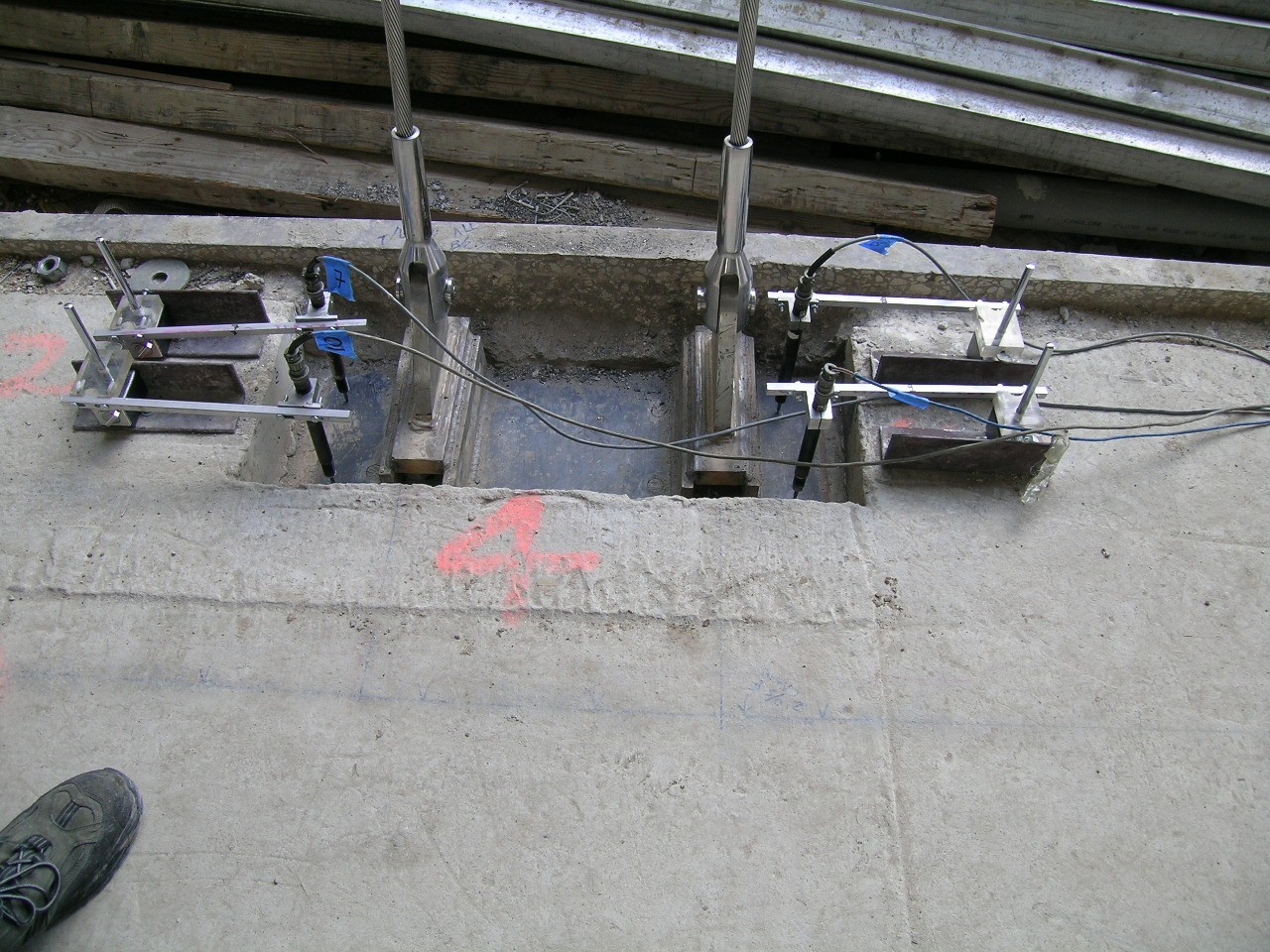

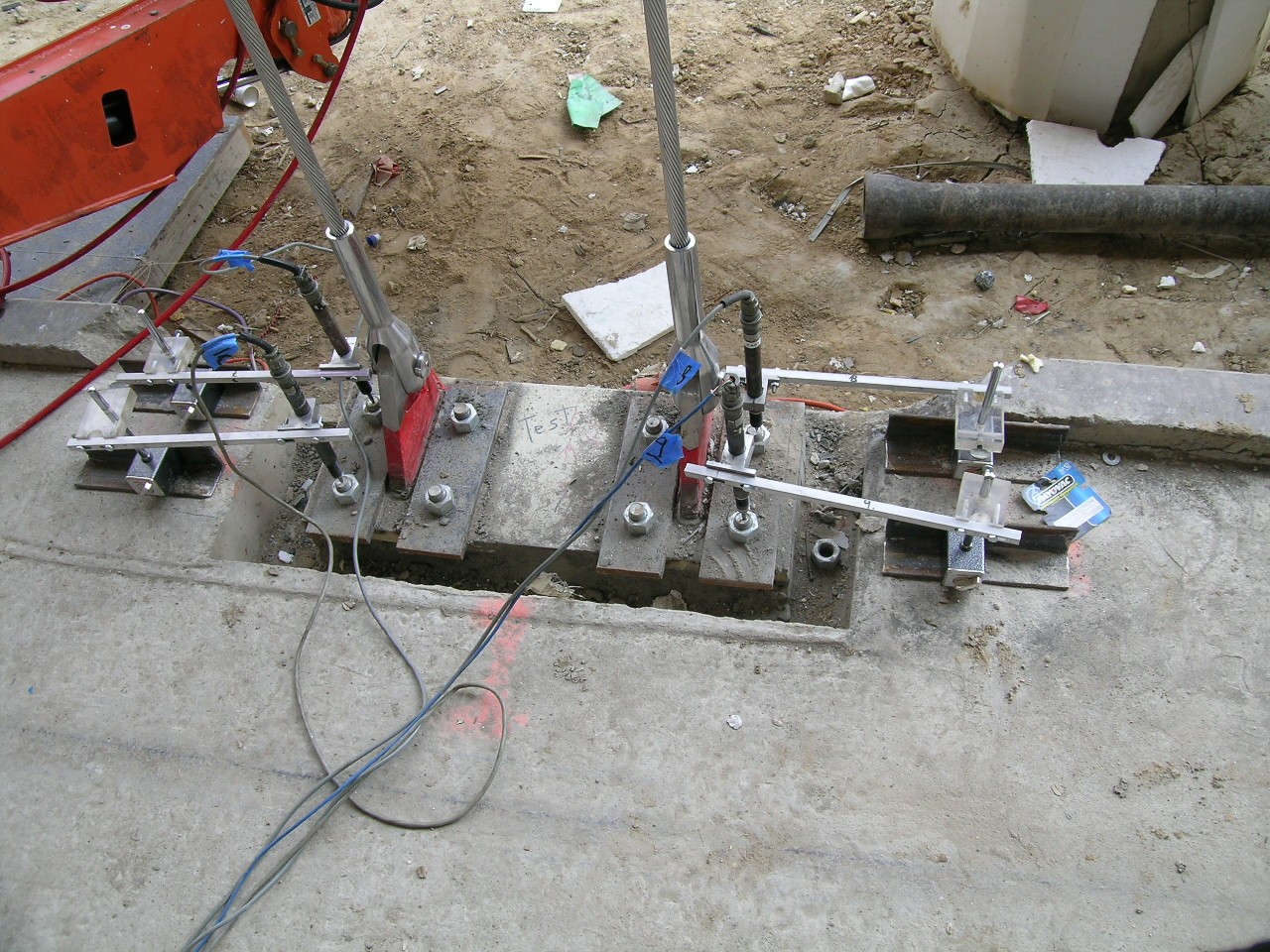

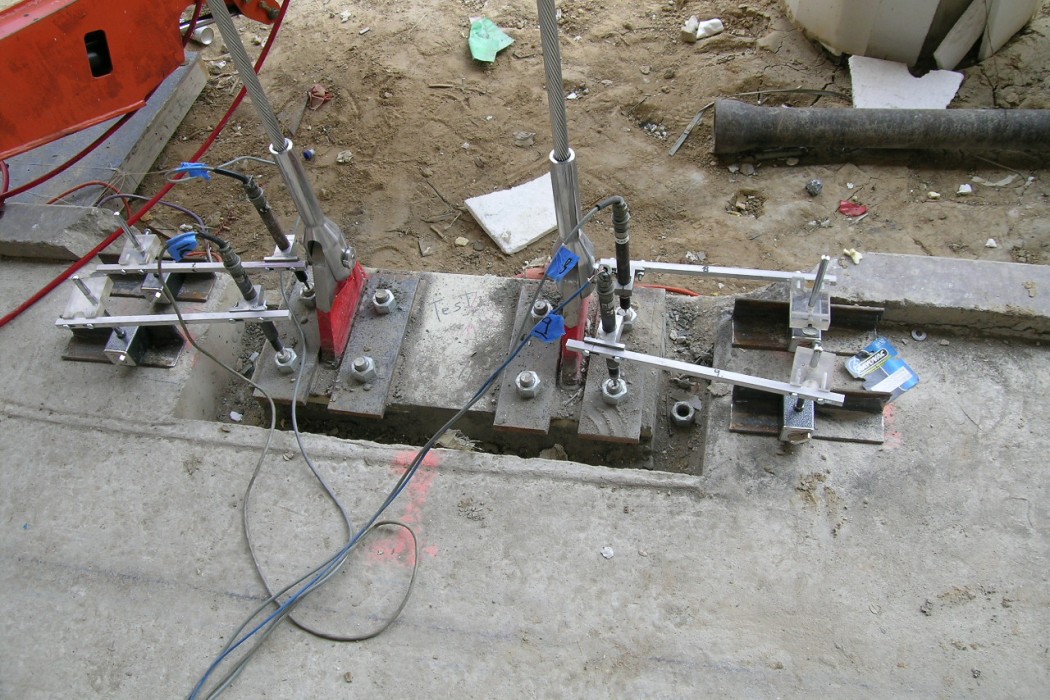

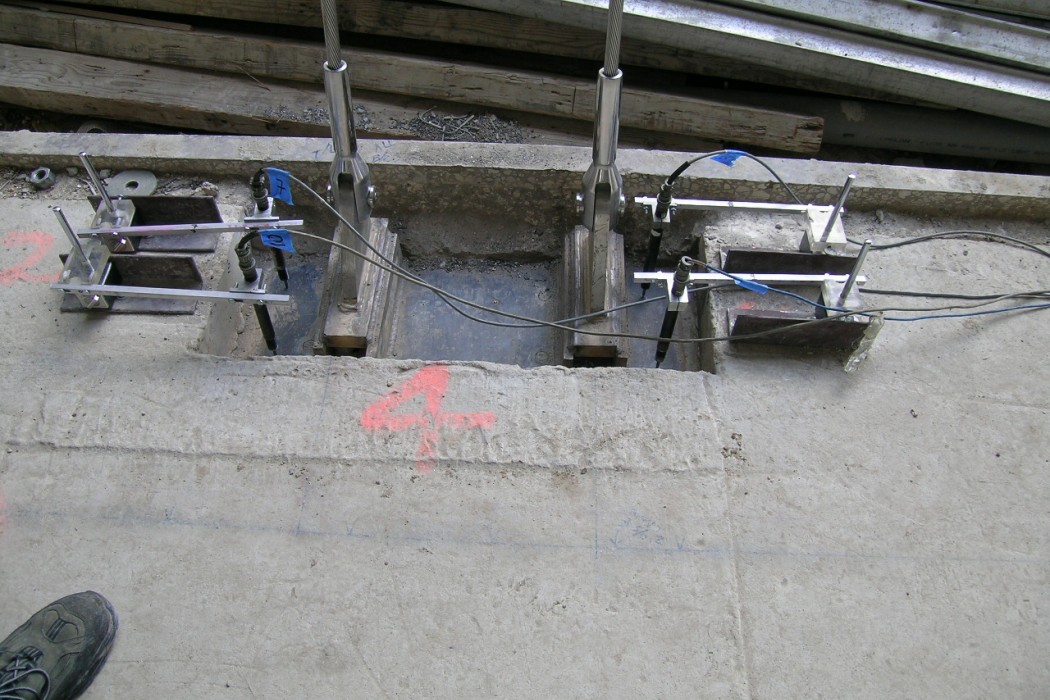

In order to provide meaningful results related to the functionality of the system, WJE engineers developed and executed a complete test protocol, including the selection of test specimens, instrumentation design, and monitoring of specimen performance under load.
