Court Street Bridge


CLIENT
Bergen County
LOCATION
Hackensack, NJ

Post-Hurricane Evaluation and Recovery Efforts

Hurricane Sandy did extensive damage to Court Street Bridge’s electrical systems. Stafford Bandlow Engineering (SBE), a division of WJE, was called in by Bergen County to lead the recovery efforts for the bridge. SBE was tasked with surveying and testing the electrical systems to determine the condition of the existing system, evaluate what damage had been caused, and determine what equipment could be salvaged for reuse.


BACKGROUND

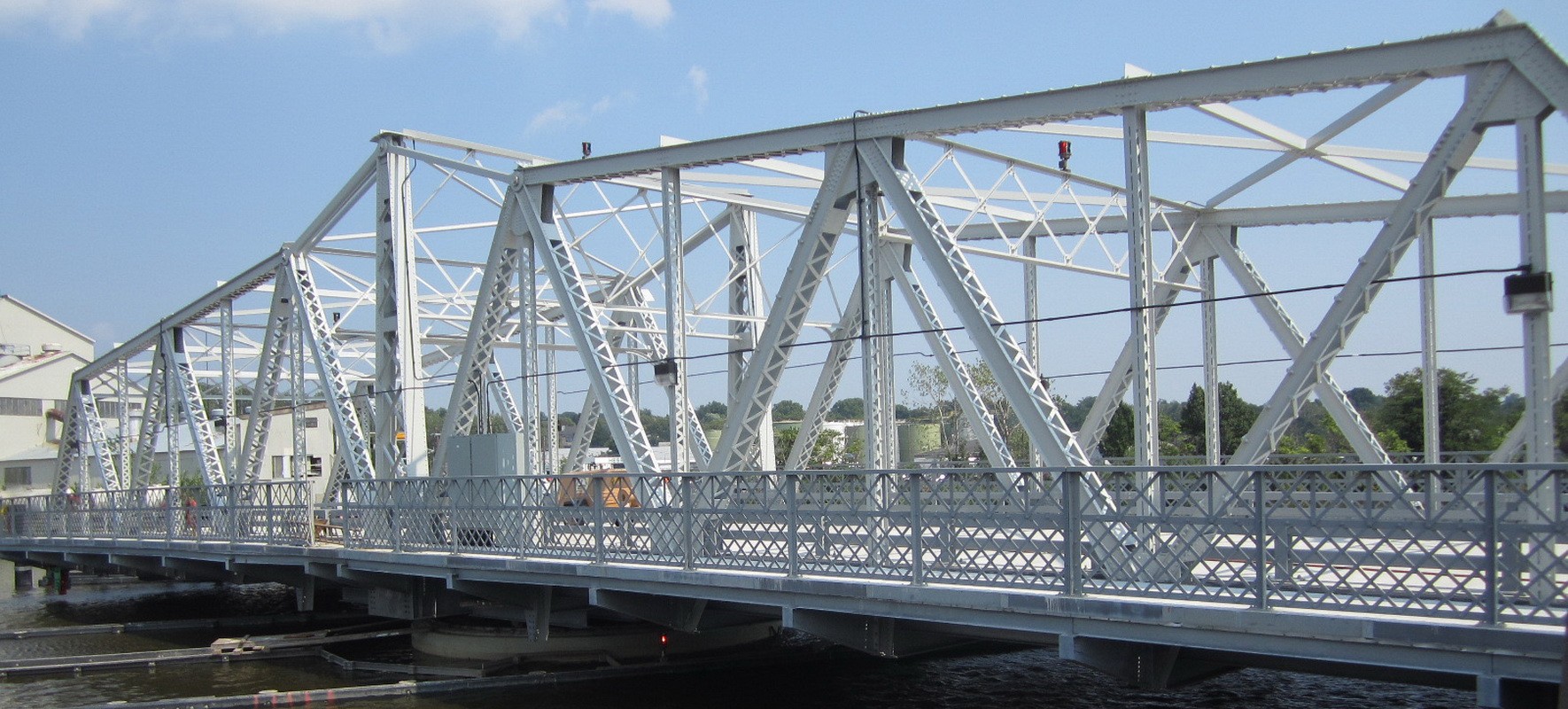

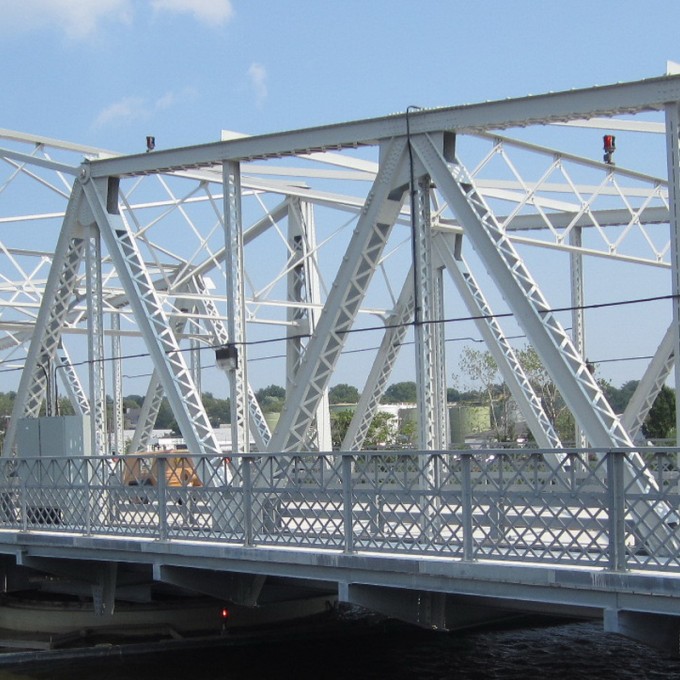

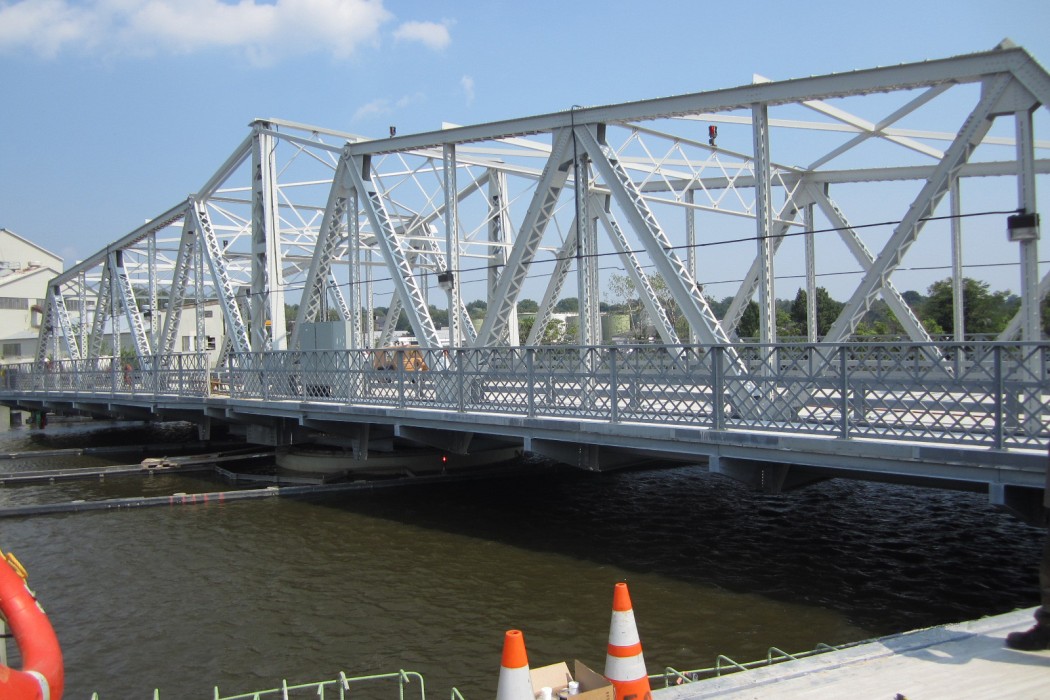

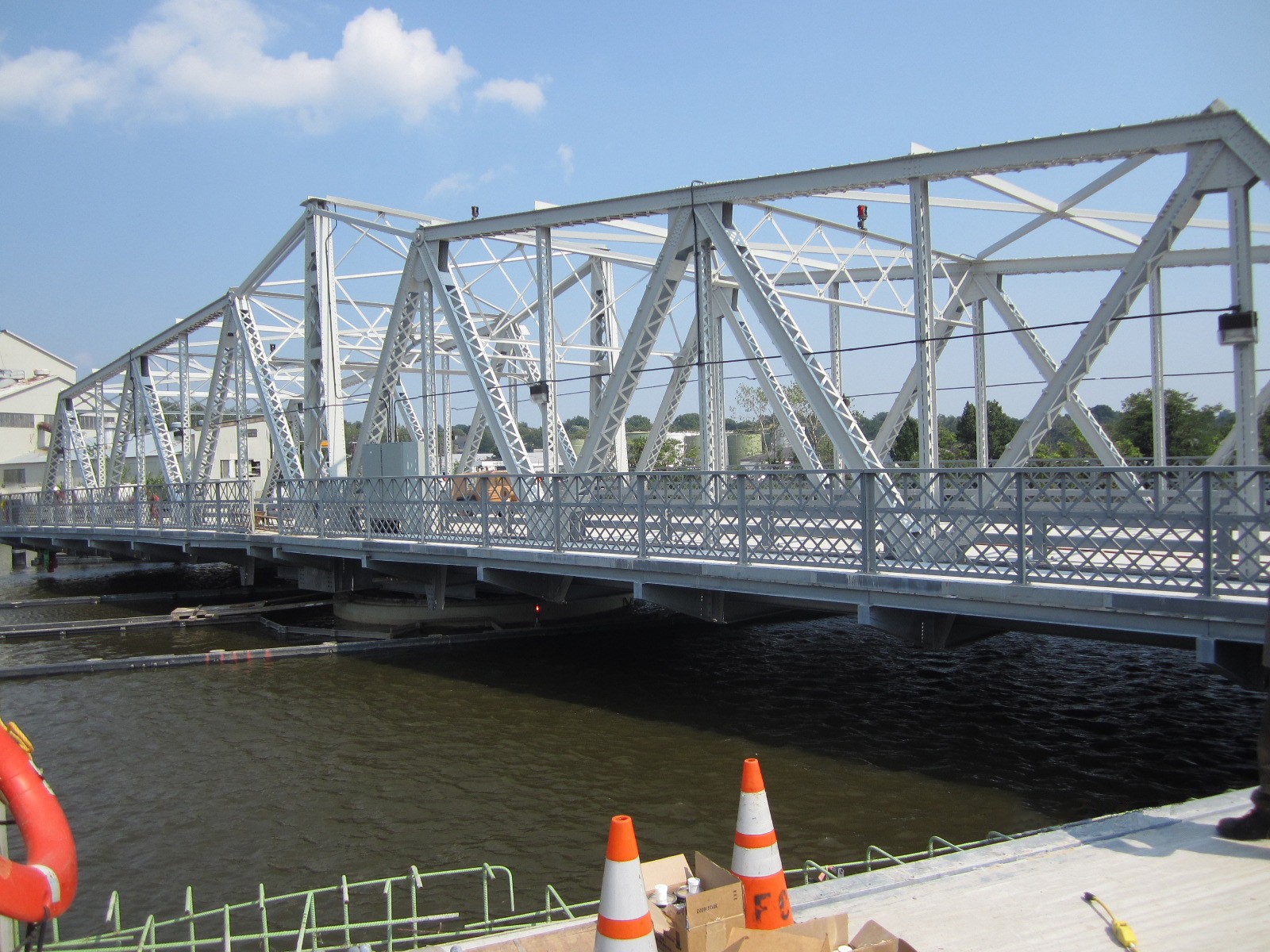

Opened in 1908, Court Street Bridge—also known as the Harold J. Dillard Memorial Bridge—was constructed by R.F. Long and Company, a New York firm and prominent bridge contractor in Bergen County, New Jersey. The center-bearing swing span highway bridge crosses the Hackensack River between Hackensack and Bogota in Bergen County, New Jersey.

Stafford Bandlow Engineering was responsible for the design and engineering services for the major rehabilitation of Court Street Bridge in 2012. The bridge was completed, commissioned, and placed into service during September 2012, prior to Hurricane Sandy.

SOLUTION

SBE determined that a proportion of the damaged equipment could be salvaged and prepared specifications and procedures for refurbishments. SBE also tested the salvaged equipment and developed specifications for necessary replacement equipment. The refurbishment of the salvaged electrical equipment consisted of refurbishing motors—including re-winding and re-baking of the motor insulation—as well as the motor control equipment—including the replacement of motor starters; rewiring and replacement of control system relays and contactor coils; and the replacement of damaged enclosures, junction, and pull boxes.

In addition to the refurbishments and replacement of equipment, new cabling and raceways were reinstalled, equipment relocated, and the installation hardened to ensure system integrity and protection from similar future storm damage. The redesign work included relocation of equipment to increase their elevation and ensure they would remain above the revised one-hundred-year storm elevation under future catastrophic events.
