Client

GMA Insurance Adjusters/Affiliated FM

Background

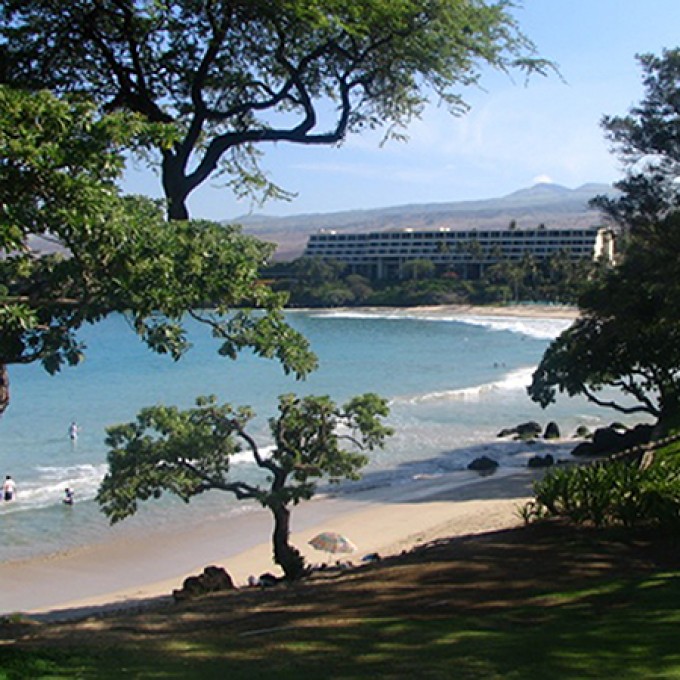

Mauna Kea Beach Hotel is one of the world's most structurally convoluted and architecturally significant midcentury concrete buildings. Edward Charles Bassett from Skidmore, Owings and Merrill designed the original 151-room signature building, which was built in 1965 of cast-in-place concrete. The buildings were designed to conform to, and not intrude on, the natural surroundings.

Solution

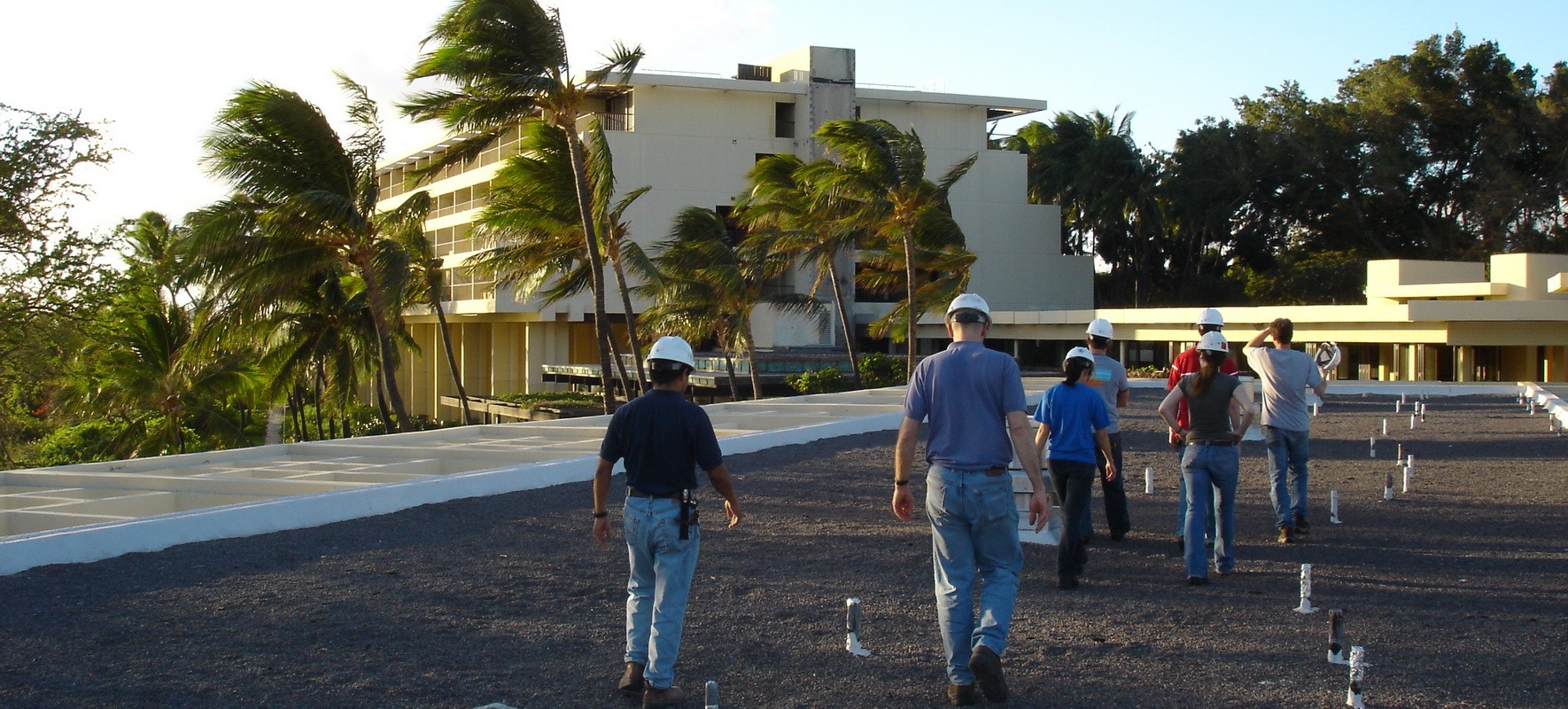

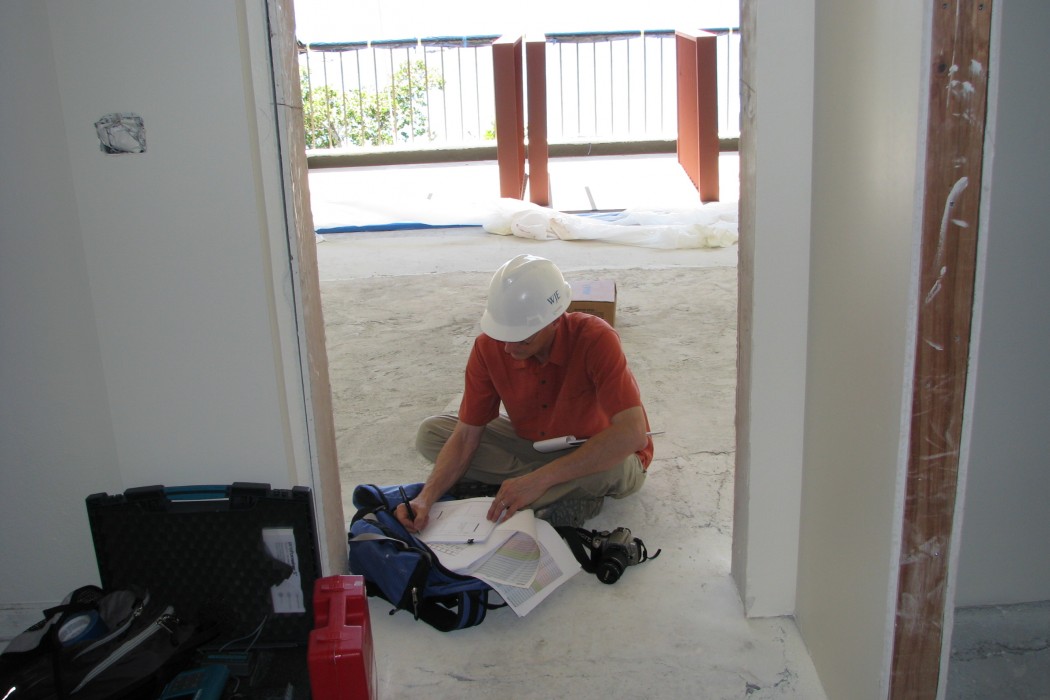

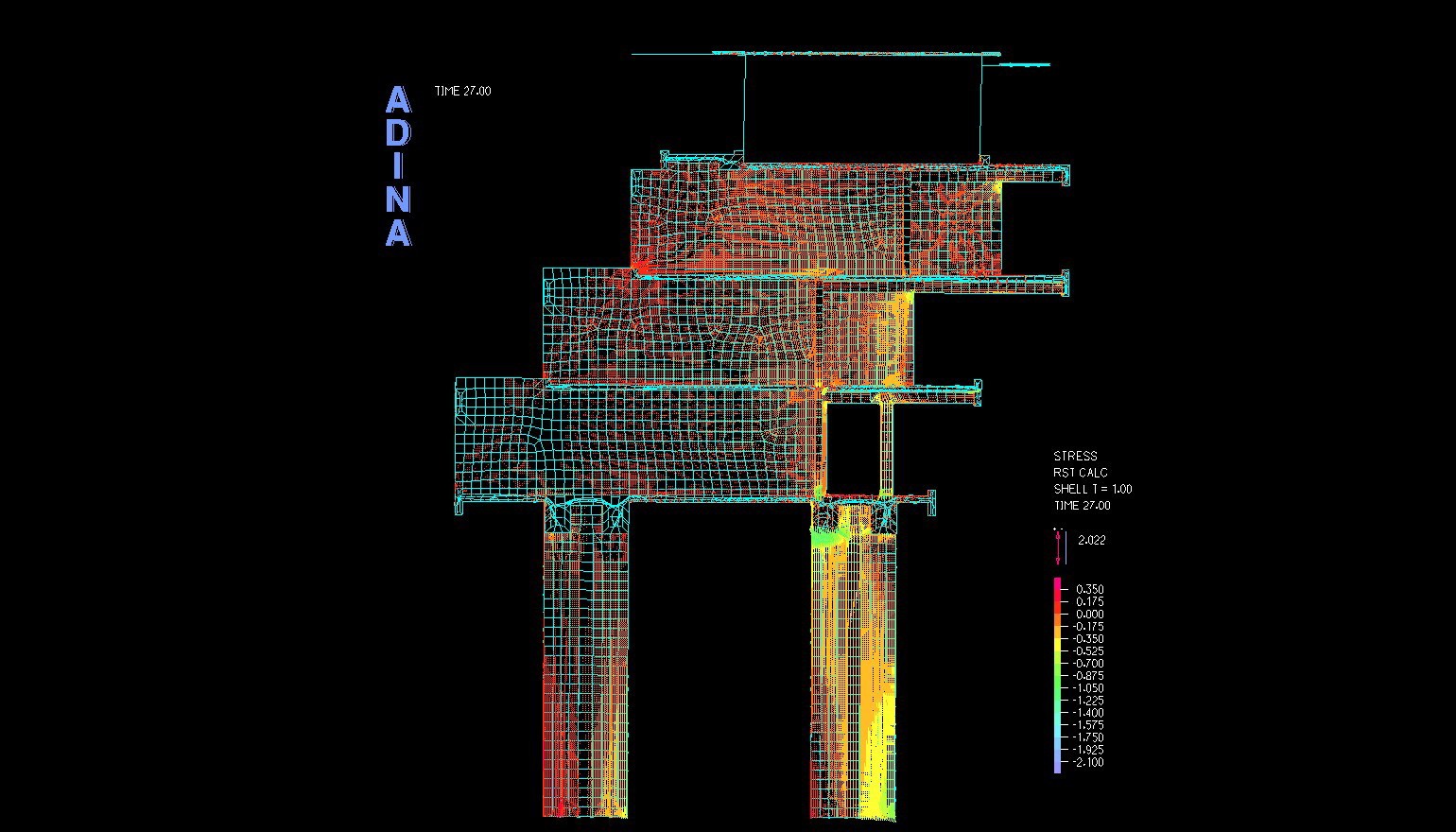

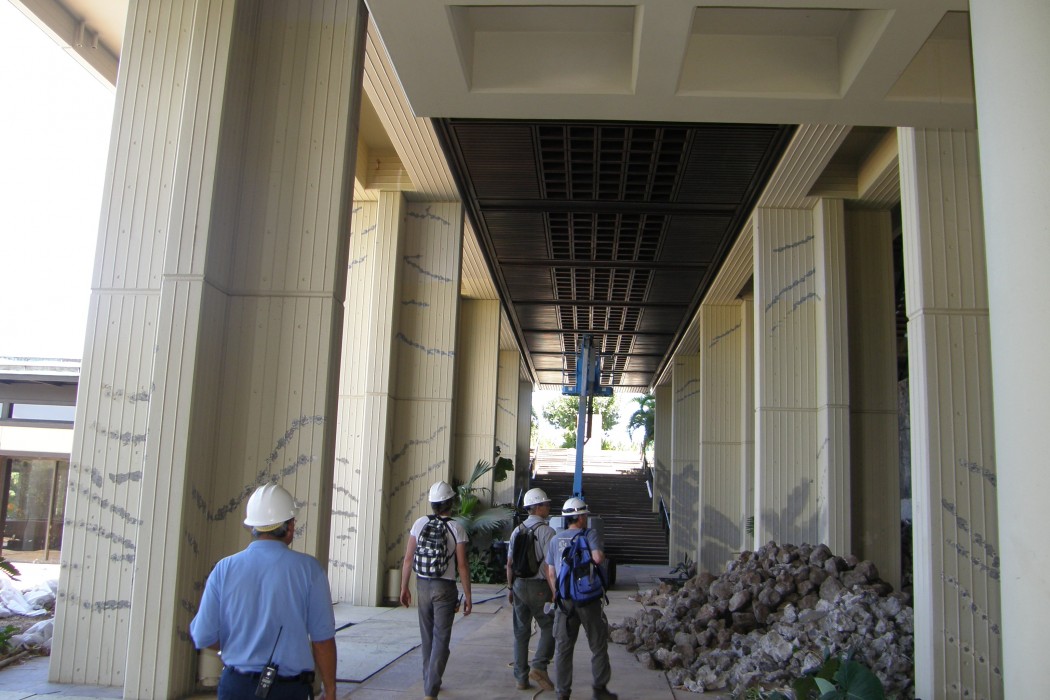

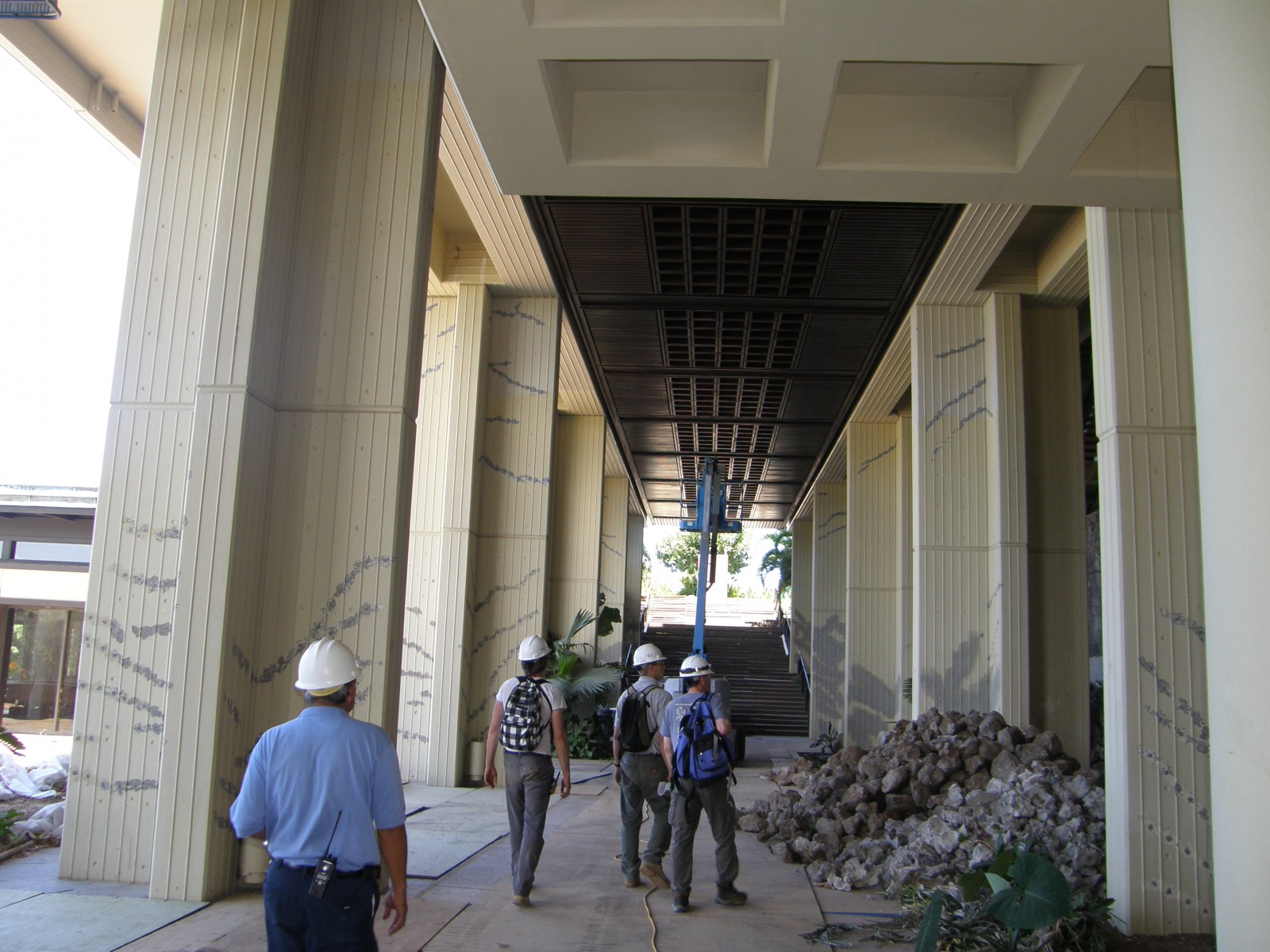

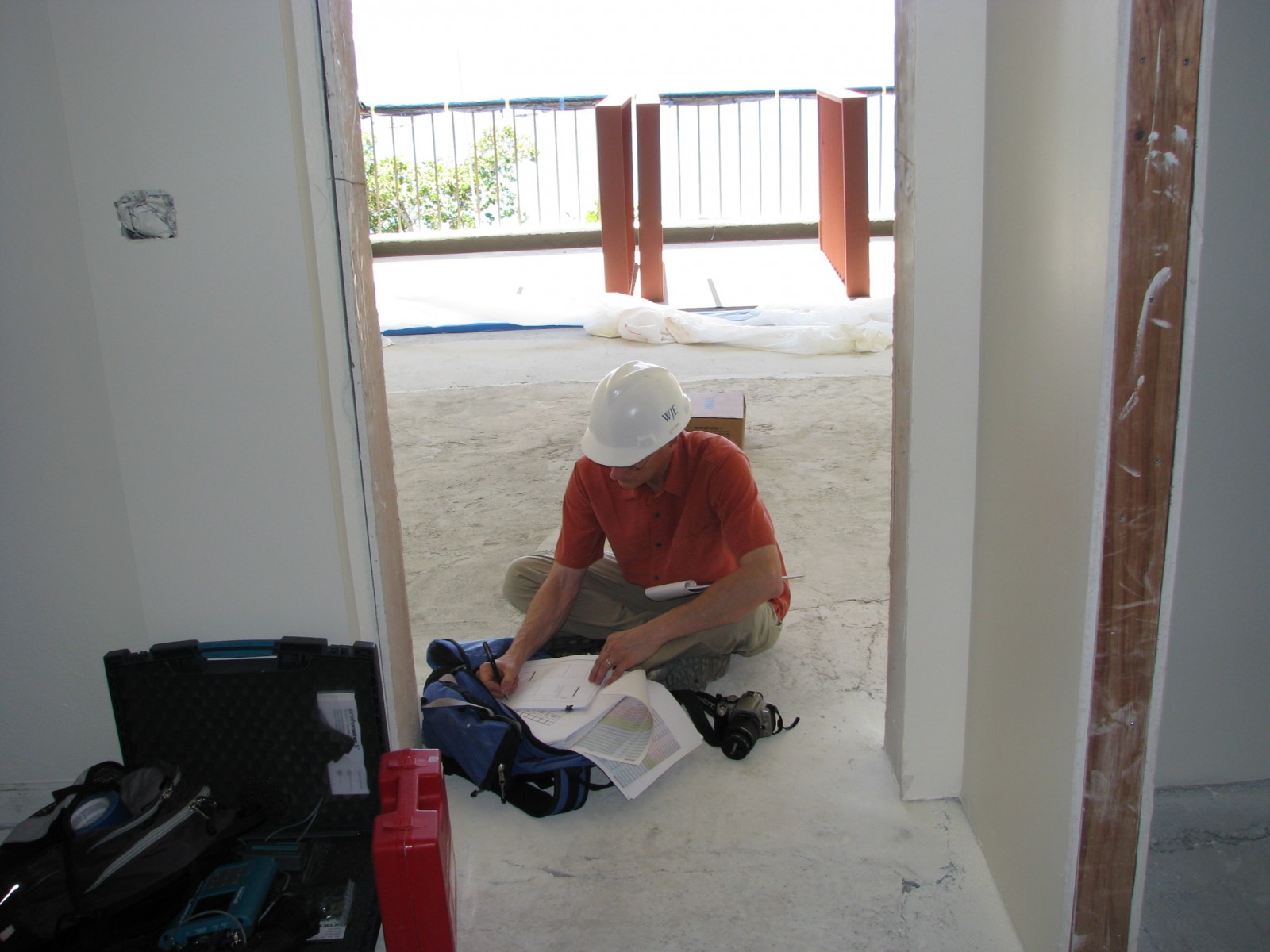

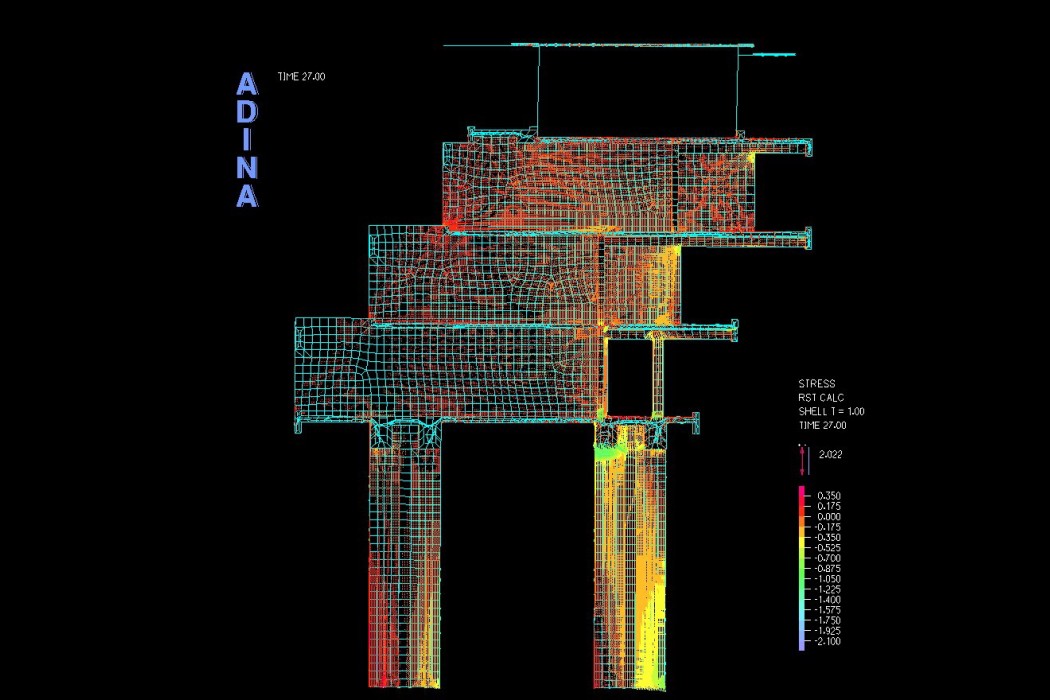

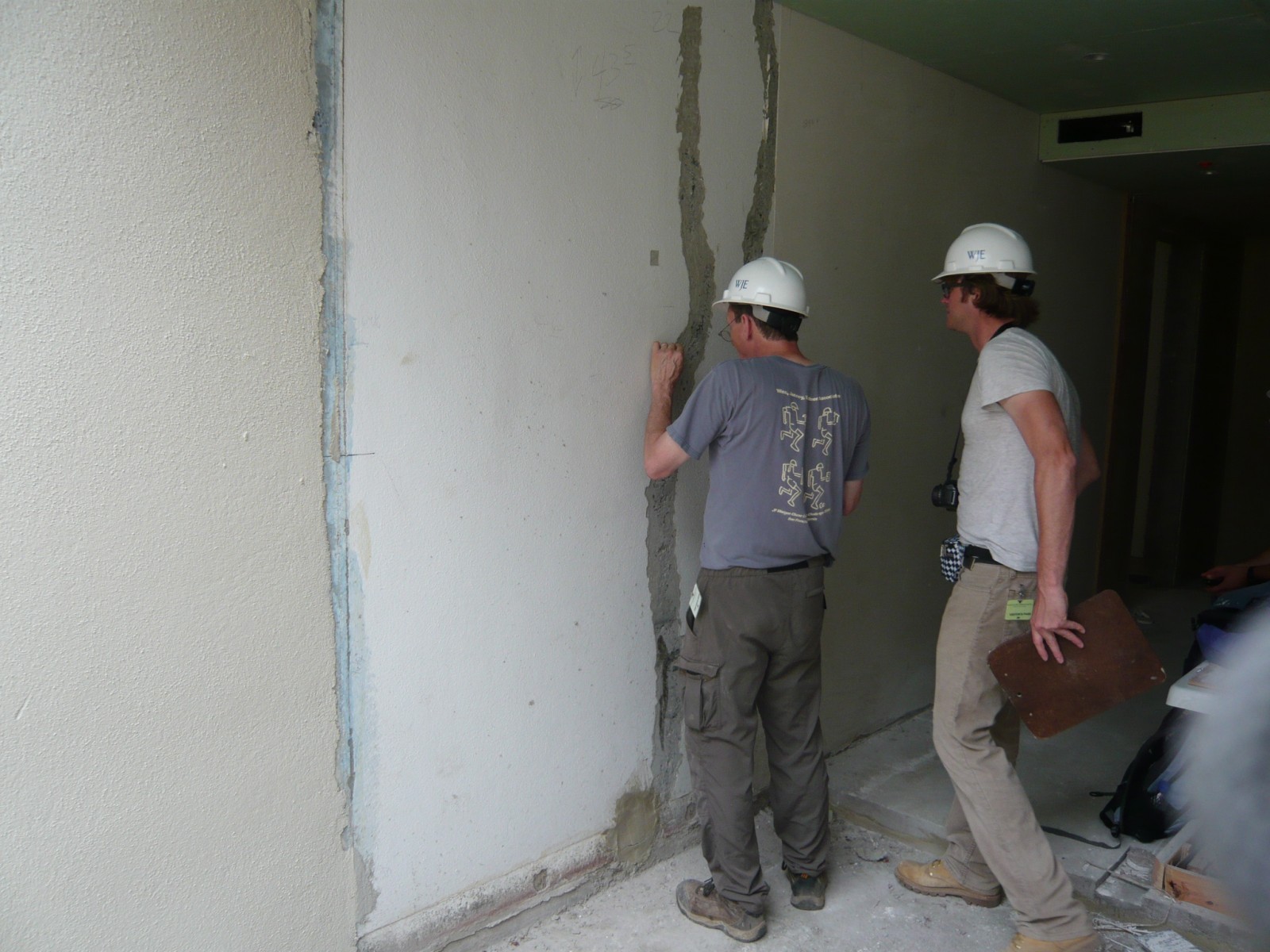

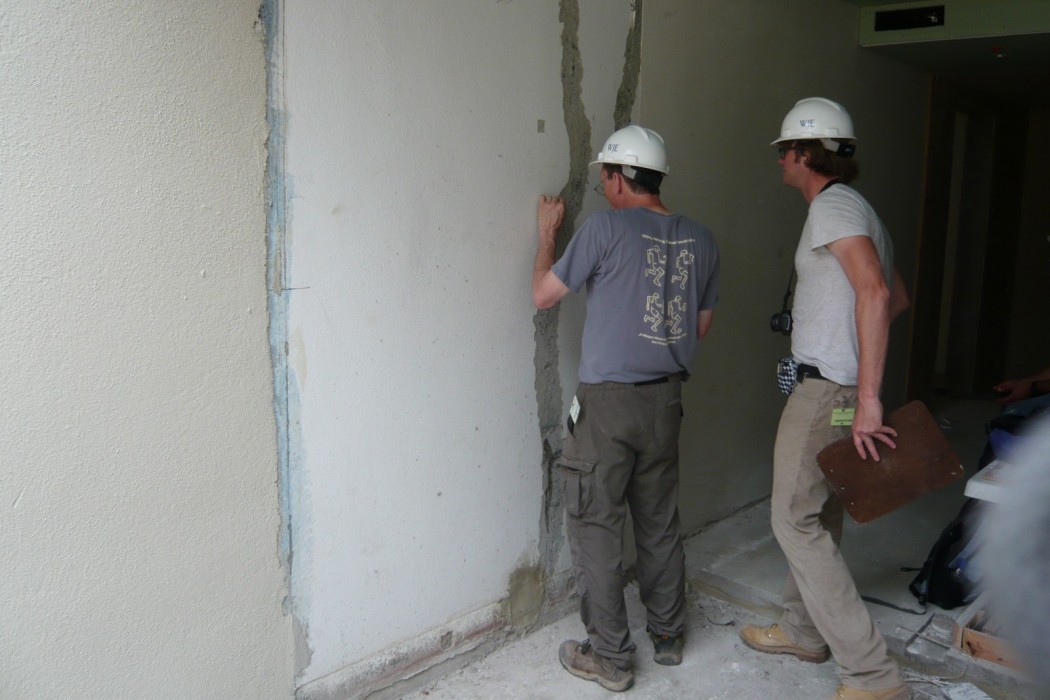

Between October 2006 and August 2009, WJE personnel from six offices conducted over seventeen site visits. Each visit required precise coordination, with up to twelve people on-site for up to fourteen days at a time. Team members spent many hours completing damage assessments by mapping cracks, surveying the roof and lava rock walls, observing repairs, and marking core locations for future destructive testing programs. WJE prepared conceptual repair plans, elevations, detailed drawings, and technical specifications for the repair of the roof trellis at the Beach Cottage, lava rock landscaping walls, pedestrian bridges, cruciform piers, cracks and shear walls. State-of-the-art nonlinear analysis methods were used to explore the behavior of the building during construction, under sustained dead load and shrinkage, and during an earthquake event. WJE used the finite element program Adina to model and analyze a portion of the main building and considered every piece of reinforcing steel and construction sequencing. Aggregates were obtained by WJE from a long-abandoned local quarry to recreate the original concrete mix in order to conduct laboratory studies to quantify shrinkage and tensile creep properties. WJE also provided litigation support.
